THE ORIGINAL ROOF TOP TENT
TRADITION MEETS INNOVATION
Overcamp is a cutting-edge roof tent. Great attention to detail, the attractive colours and design, the reassuring tough fabric which is waterproof, strong outer structure smooth to the touch are just some of the outstanding and eye catching features of Overcamp. Overcamp is an excellent roof tent, suited to any camping situations.
It is easy to set up this roof tent: closed on the roof, Overcamp is compact and can be opened simply and automatically until the bottom of the ladder touches ground. No ropes, tie-rods, pegs, hammers: like all Autohome roof tents, Overcamp is simplicity itself. Without forgetting safety and comfort that only a roof tent is able to provide.
Overcamp offers additional storage capacity on roof rack, allowing you to carry your sporting equipment easily: your bicycle, canoe, surfboard, hand glider or other accessories for your favourite sport. Another feature is the unique Double-up system which allows you to obtain twice the normal living space by fitting two tents on one roof. You can carry two Overcamp even on the smallest of cars and obtain four places (2+2) or eight places on large vehicles (4+4) providing two totally independent bedrooms. Overcamp is the unrivalled choice for adventure going people.
COLOUR OF FABRICS
MODELS AND SIZES
Recommended for two adults.
|Open:||cm 130 x 200 x h 100|
|Close:||cm 65 x 200 x h 35|
|Weight:||about 50 Kg*|
Recommended for two adults and two children.
|Open:||cm 180 x 200 x h 115|
|Closed:||cm 90 x 200 x h 35|
|Weight:||about 57 Kg*|
Side positioning: the tent will occupy only half of the car roof space.
|You can fit: |
Small + Small,
Medium + Small or
Medium + Medium on large vehicle
Overhanging positioning: the tent occupies one half of the vehicles roof.
The 2 “C” shaped mounting channels in the tent base and 4 clamps, supplied, allow the user to position the tent on the vehicle roof according to their needs and requirements. The exclusive hinge mechanism allows a safe and secure overhang to one half of the tent, allowing bikes, surf boards or other sports and leisure equipment to remain in place on the other half of the vehicle’s roof bars, always ready for use.

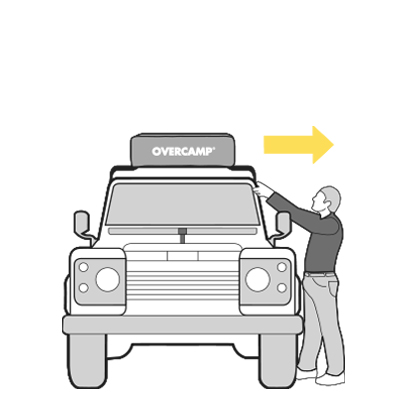

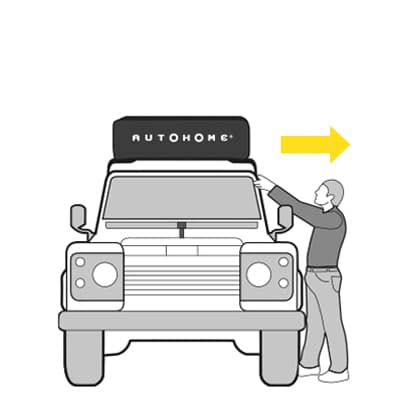

1 - When closed the tent looks like a small roof box. The over cover is secured by a continuous elastic cord which is very easy to remove and being made of strong PVC material, it offers complete protection while travelling.

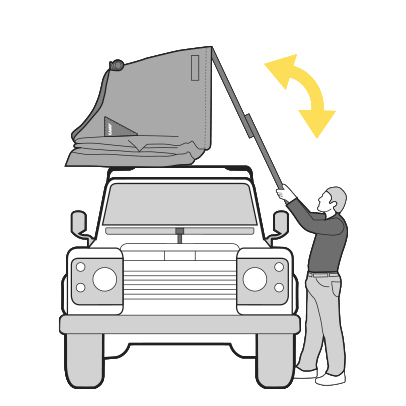

2 - Quick and easy book style opening. By just pushing down on extended ladder, the tent will open and in an effortless instant your bed is ready.

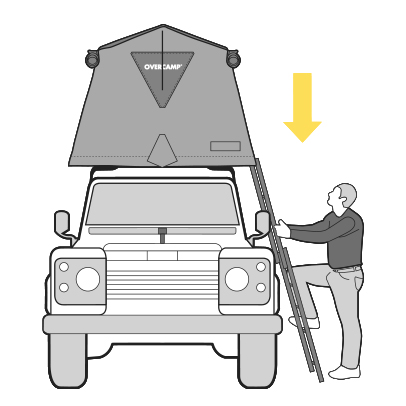

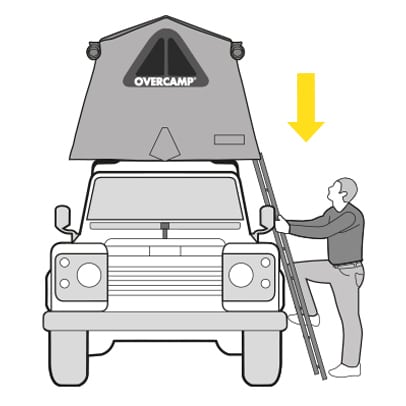

3 - A comfortable and safe bed totally raised from the floor.
1 - Fabric 50% cotton and 50% acrylic. Waterproof, tear and mould resistant, keeps its shape, offers great ventilation and doesn’t retain the heat.
2 - Multi-layer base. Long fibre wood coated on both sides with plastic material, it is waterproof, mould resistant and doesn’t lose its shape.
3 - Thick foam mattress, removable cover, with two or four pillows. Elastic under-mattress for extra protection.
4 - Strong self-contained adjustable telescopic ladder.
5 - Windows fitted with fine mesh mosquito nets and zip fasteners to create useful shutters.
6 - guy rope enables you to open the windows from inside.
7 - Water diversion system to stop water seeping through.
8 - Two inner storage pockets.
9 - Two air inlets with velcro closure
10 - Mosquito mesh on both sides, that can be rolled-up or closed by simple zip fasteners.
11 - Large openings that can be closed by two vertical zip fasteners and one zip fastener on the base to protect from draughts. Two support bars hold open the doors to create roomy awnings.
12 - Exclusive self-guiding system developed to withstand different stresses allowing a long life.
COMFORT ALWAYS HOLDS THE FIRST PLACE
The roof and sides are made of a heavy duty single skin 420g/ m2, 50% cotton and 50% acrylic fabric, which is water proof, breathable and rot-proof.
This fabric has several advantages: it’s extremely breathable, so inside the tent is fresh and airy, unlike plastic-coated or resin-treated fabrics, which are non-breathable and therefore create lots of condensation, which is the main cause of moulds. However the breathable nature of the fabric doesn’t reduce it’s impermeabilty to rain: on contact with water, the fabric weave swells and thickens; where sewing has occurred, the holes created by the needles swell and seal as does the thread used for stitching, whereas in plastic-coated fabrics, some permeable holes will still remain.
The boards used for the tent base are made of a poplar plywood, which, thanks to its long fibres, is very resilient and hard-wearing. This 12 mm thick plywood has been developed for this particular application; the different layers are bonded together by the cross-overlapping method, following the wood grain to produce the products unique features. The Air-Camping procedure includes, veneering both outside and inside of the tent base, by applying two 0.3 mm thick Silver-Quartz CHPL (Casework with High Pressure Laminate Finish) laminated sheets. The plywood, therefore, has a double protection: it is waterproof and water-repellent both outside and inside, does not absorb humidity, will not warp and prevents the formation of harmful mould.
A widely used, high-technology yarn, made of two different fibres: pure cotton outside, to swell on contact with water and fill the holes made by the needle plus a synthetic fibre core is used on the inside of the yarn to obtain a high strength seam.
OVERCAMP TECHNICAL DETAILS
The closed tent can contain 2 or 4 pillows, depending on the model, and night-time accessories.
For example, a rucksack and blankets can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.
When choosing a roof tent, the height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The width (SMALL /MEDIUM) depends on the number of occupants
The windows are big enough to give an excellent view and small enough not to compromise privacy.
The widest possible door is provided, 170 cm in the Small version and 195 for Medium.
Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied.
DESIGN MADE IN ITALY
Design Made in Italy means quality, originality and style. A production process based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition.
The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.
PRACTICAL EASY TO USE ACCESSORIES
Self contained, easy and quick to assemble, it makes your holiday, weekend or adventure trip even more comfortable without impeding your freedom of movement.
Each Overcamp model can be supplied with:
• The Verandah, totally self-contained for a comfortable stay.
• Winter hood made of nylon fibre, it is an invaluable protection against the cold and wind.
• Feet, for placing Overcamp on the floor.
• Awning, very useful for a short break.
• Double awning, a single large awning to place on top of Overcamp when combined together. Other accessories:
roof-bars, space saving garage storing rack, PVC mats, bike and surf/kayak racks.
VERANDAH (FOR CARS)
Art. O/03A - cm 200 x 200 x h 240
Quick and easy to assemble. It is very versatile with openings fitted with two-way zip fasteners on all sides. Used with Overcamp, it transforms it into a traditional camping tent with day and night areas.
Triangles of series with zip to attach the verandah to Overcamp on the floor, another option for a really comfortable holiday.
Art. O/05AA large and functional awning attached to Overcamp by means of a zip fastener, its self-contained strong structure provides extra protection from the sun and rain.
Roof: 200 x 170 cm.
Length 4 metres approx.
Four strong feet to enable you to place Overcamp on the floor if desired. Approximately 25 cm high, they keep you a safe distance from humidity, water and insects. Foldable and clutter free, they can remain attached at the base while in transit.
Made of resin blonded nylon fibre and aluminium powder, it is an invaluable protection against the cold and wind. Extremely useful for travellers going North.
Very quick and easy to fit, it can be left on even when Overcamp is closed.
The exclusive Autohome security system allows all tents to be used on any vehicle: small cars, off-road vehicles, station-wagons, MPV’s (or people carriers), camper vans, and pick-up trucks... A universal, quick attachment system, allows you to position the tent safely in any position, with no risk of damage or modifications to the body of the vehicle. Various fixing kits are available to suit.
All tents are fully independent for easy installation on the car roof.
The C-shaped steel rails integrated into the bases of all Autohome models strengthen the structure and make it possible to fix the tent to the roof bars by means of special clamps.
Just two people (standing beside the car) can easily lift the tent and position it on the roof bars without risk to the bodywork.
The standard clamps slide along the C-shaped rails to fix the tent in the desired position. This position varies depending on the type of car, to be used as a carryall or for best appearance.
The tent bases must not be drilled for fixing onto the roof bars.
No holes are to be drilled in the roof bars to secure the tent. This operation is prohibited by current safety regulations. It is not permitted to make changes to the roof rack.
4 clamps are provided as standard for simple, easy mounting according to the rules.
Universal System Autohome is a mounting system according to the standards, certified by T.V - ID: 0000024461. Beware of imitations.
An example of a roof rack for motor cars without water channels.
Connection for off-road vehicles or motor cars with water channels.
Attachment bars for motor cars with fitted rails.
Special Order: Roof Bars or Expedition Roof Racks available in Steel or Aluminium.
