A NEW STYLE

Beauty, the natural feature of the aerodynamic design of the Maggiolina Grand Tour roof tent, is coupled with dynamism in a perfect mix of aesthetics and practicality. The new range is an invitation to discover hidden treasures: just take your place inside the roof tent, and you will notice the comfort and spaciousness.
Like every roof tent made by Autohome, Maggiolina Grand Tour is designed for comfortable, safe and dry overnighting, whatever the weather. A synonym of excellence, Autohome roof tents are used by extreme camping professionals the world over, providing safe shelter. This range of roof tents comes in different sizes to meet your particular needs: Maggiolina Grand Tour guarantees freedom and space.
Autohome: “ A simple silhouette and a great look "

COLOUR OF FABRICS

Gray
Carbon

SHELL COLOURS

White
Black

FIBERGLASS 100% "GLASS RENFORCED PLASTIC" - GFK IN GERMAN

Shells are handmade by precision craftsmen, the best guarantee of quality: a quality structure, compact, pull-out, unlike ordinary plastic or similar products available on the market. The fiberglass insulates the inside from the heat and cold and can be cleaned easily (it is undamaged by aggressive cleaning agents). Strength, reliability, comfort, quality: Maggiolina roof tents are all this and more.

MODELS AND SIZES
MAGGIOLINA GRAND TOUR

smallSMALL
Aerodynamic version with spacious interior.
Recommended for 2 adults.
Art:MG/12 – MC/12 -MBS/12
Maggiolina Grand Tour Small
Sizes:130 x 210 cm
Closed h:36 cm
Open h:96 cm
Weight:about 58 Kg*
Volume:about 344 l*
smallMEDIUM
Aerodynamic version with spacious interior.
Recommended for 2 adults + 1 child.
Art:MG/13 – MC/13 -MBS/13
Maggiolina Grand Tour Medium
Sizes:145 x 210 cm
Closed h:36 cm
Open h:96 cm
Weight:about 62 Kg*
Volume:about 378 l*
smallLARGE
Aerodynamic version with spacious interior.
Recommended for 2 adults + 2 children.
Art:MG/14 – MC/14 -MBS/14
Maggiolina Grand Tour Large
Sizes:160 x 215 cm
Closed h:36 cm
Open h:96 cm
Weight:about 73 Kg*
Volume:about 461 l*
THE COMPLETE RANGE
MAGGIOLINA GRAND TOUR

Open H max 96 cm
smallSMALL
Aerodynamic version with spacious interior.
Recommended for 2 adults.
Art:MG/12 – MC/12 -MBS/12
Maggiolina Grand Tour Small
Sizes:130 x 210 cm
Closed h:36 cm
Open h:96 cm
Weight:about 58 Kg*
Volume:about 344 l*
smallMEDIUM
Aerodynamic version with spacious interior.
Recommended for 2 adults + 1 child.
Art:MG/13 – MC/13 -MBS/13
Maggiolina Grand Tour Medium
Sizes:145 x 210 cm
Closed h:36 cm
Open h:96 cm
Weight:about 62 Kg*
Volume:about 378 l*
smallLARGE
Aerodynamic version with spacious interior.
Recommended for 2 adults + 2 children.
Art:MG/14 – MC/14 -MBS/14
Maggiolina Grand Tour Large
Sizes:160 x 215 cm
Closed h:36 cm
Open h:96 cm
Weight:about 73 Kg*
Volume:about 461 l*
THE COMPLETE RANGE
MAGGIOLINA GRAND TOUR

Open H max 96 cm

FEATURES

Elegantly designed and aerodynamic classic models perfect on small cars and 4WD vehicles. Models equipped with opening “by handle”, soundproof and anti-condensation roof, high density sponge mattress with cotton cover, 2 to 4 pillows and adjustable aluminiun ladder for medium height vehicles..

Grand Tour: offers the most internal capacity of Maggiolina Range when closed. Wide internal volume to fit all your overnight stuff, sport bags, travel tools, backpacks and valuables. Everything sheltered in case of bad weather.

1 - Easy-to-use handle to open and close in a flash. The reliable function is assured by a mechanism consisting of screw jacks linked by a chain drive system within the structure.

2 - This opening system is reliable, lasts forever and needs no maintenance. It is operated by a removable handle. When the tent is open it will remain steady even in stormy weather conditions. In addition, it is appreciated because it adjusts the tension of the fabrics so they are always taut: even after years, the fabrics do not go limp, so stability is maintained, along with good weather-proofing and the appearance of the tent.

3 - The handle is also an anti-theft device for your contents stored inside, as the shell cannot be opened without the handle.).

1 - The aerodynamic design coupled with its ample storage capacity will allow you to safeguard all your overnight items, camping/travel accessories, sporting equipment and valuables from all weather conditions.

2 - All tent models have 2 doors (one each side) and 2 windows (one each end). Each opening is equipped with zip fasteners and mosquito mesh screens.

3 - Roll up, roll down mosquito net with two zip fasteners.

4 - Each Maggiolina has a overhead Osram® quality light (18x5 cm), with 3 super bright Leds, with pivotable reflector and easy to replace batteries. Roof is equipped with anticondensation insulation.

5 - Maggiolina has three “self-adjustable” locks to offer the perfect locking even after years.

6 - All tent models are equipped with two doors as standard, one each side, giving the user a choice for entry and exit as well as complete through ventilation of the tent. The Grand Tour range has 2 large French windows, wider than standard: L= 90 cm rather than 75 cm. Doors with adjustable openings, for greater air circulation without forfeiting privacy. Adjustable doors for greater air circulation without forfeiting privacy.

7 - Protection sheet fitted to the base of the door giving greater insulation and protection from dust, rain and cold.

8 - The aluminium ladder has very small overall dimensions. The antiskid unit is normally supplied with the tent.

9 - As standard, the automatic spring device blocks the ladder when it is open. The risk of slipping is prevented and the ladder is stable and safe on any terrain. Top of range versions, further equipped and with more optional than the classic version.

10 - 11 - 12 - Entry and exit is made using either of the 2 doors* with vertical zip fasteners. A second, additional, arc zip fastener is also fitted for partial door opening giving privacy and ventilation which can help eliminate condensation.

13 - Closing, the elastic guys can be activated by simple clips to fold the fabric inside the shell. The elastic is fitted neatly, not sewn onto the fabric, and does not cause crumpling, creasing or damage, ensuring perfect waterproofing and a good-looking tent. This feature is particularly useful with high vehicles.

14 - Ladder storage bag.

15 - Stowage nets, useful for sleeping bags, towels and personal belongings.

16 - Four removable pockets, two each side, fitted as standard.

17 - 18 - Kit Fix (Art. K/F) - Grand Tour Small and Medium versions are configured for roof bars using ‘Kit Fix’ Art. K/F (not supplied) suitable for transporting sporting or camping equipment.

MATERIALS

FABRIC ASSESSMENT CRITERIA

The optimality of any fabric cannot be assessed only by looking at its impermeability and watertightness, it is indeed essential to consider also its perspiration: every square centimeter of a fabric has to contribute to the natural air exchange cycle, in order to deliver such a real level of comfort that only the high perspiration of the fabric and the fast transmission of water vapor are able to guarantee.

THE TRUTH ABOUT BREATHEABILITY

traspirabilitaApproach the tent, take a flap of tissue and press it firmly against your mouth with one hand and breathe out hard.

If the palm of your hand feels the air passing through this means that the fabric is breathable.

Hot summer nights, no drafts of air or partly open windows to combat the humidity.

With a breathable fabric you never feel suffocated and can always breathe deeply in all conditions.

TEXTILE WITHOUT COMPETITORS

magg_tech_dralonWe cannot control the weather, however we can build in features to ensure your comfort is assured in extremes of climate.

Autohome use Dralon® from Bayer Textiles.

Dralon is completely waterproof, windproof and breathable.

Dralon will insulate campers/occupants from heat and cold and will eliminate external light, allowing you a good nights sleep.

HIGHT QUALITY TEXTILE

Our textiles satisfy the quality standards of the highest category of products.
Our textiles comply with the following standards:
UNI EN ISO 9237/97
UNI EN 24920/93
ISO 105B04
ISO3801
The extraordinary tests on our yarns and seams (UNI EN ISO 13935-2/01) have also evidenced their unquestionable efficiency and absolute reliability.

THE TRUTH ABOUT BREATHEABILITY

traspirabilitaApproach the tent, take a flap of tissue and press it firmly against your mouth with one hand and breathe out hard.

If the palm of your hand feels the air passing through this means that the fabric is breathable.

Hot summer nights, no drafts of air or partly open windows to combat the humidity.

With a breathable fabric you never feel suffocated and can always breathe deeply in all conditions.

TEXTILE WITHOUT COMPETITORS

magg_tech_dralonWe cannot control the weather, however we can build in features to ensure your comfort is assured in extremes of climate.

Autohome use Dralon® from Bayer Textiles.

Dralon is completely waterproof, windproof and breathable.

Dralon will insulate campers/occupants from heat and cold and will eliminate external light, allowing you a good nights sleep.

HIGHT QUALITY TEXTILE

Our textiles satisfy the quality standards of the highest category of products.
Our textiles comply with the following standards:
UNI EN ISO 9237/97
UNI EN 24920/93
ISO 105B04
ISO3801
The extraordinary tests on our yarns and seams (UNI EN ISO 13935-2/01) have also evidenced their unquestionable efficiency and absolute reliability.

These are just some of the fundamental principles applied for many years by Autohome over its whole range of roof tents.
No electric fans, contraptions or commercial gadgets (of little or no use) to vacate moisture from the tent. With DRALON ® MAGGIOLINA fabrics are 100% breathable. And in the range of tents with AIRTEX® fabric, the transmission speed of water vapour is unrivalled. So, an overnight stay is always fresh and healthy even when it is raining or the doors and windows are closed.

THE ADVANTAGES OF DRALON

materiali icona 1
Breathable: Dralon does not retain heat or humidity that form condensation, making it particularly resistant to mildew.
materiali icona 2
Waterproof: Waterproofing treatment is unecessary because the fibres shed, not retain water, allowing you to fold the tents even when wet.
materiali icona 3
Stability: Dralon fibres are pre-dyed before the fabric is woven, making it fade resistant, even under burning desert sun.
materiali icona 4
Strength: Strong weft fibres help create a tear and crease resistant fabric, that will not shrink or expand even in extreme temperature fluctuations.
materiali icona 5
Temperature: The fabric is guaranteed for use in extremes of temperature, ranging from -30° C up to 70°C.
materiali icona 6
Maintenance: Construction of Dralons’ special/unique fabrics ensures a long maintenance free life.
materiali icona 7
Fabrics ensure the tents are more soundproof and less transparent agaist light than traditional materials, yet still feel soft to the touch.
materiali icona 8
Easy to maintain: No need of particular treatments.

UNI EN ISO 9237/97 test/method ratio
PERMEABILITY TO THE AIR (R) – average 23.1 mm/s

blue
blue
Gray
Gray
Carbon
Carbon
Forest
Forest
Safari
Safari

ARTISAN QUALITY IN MASSPRODUCTION

As for most of the versions of Autohome roof tents, the shells are made of fiberglass. Fiberglass is a particular fabric fiber interweaved and soaked in resinous liquid substances or polyester. This material is also known as GRP, glass reinforced plastic (GFK in German).
The above mentioned really expensive liquid resins, once adequately mixed with catalyzing or accelerating additives, are manually spread with hairy roller brushes on a glassy fabric previously lay on open stamps. In this way, while solidifying, the liquid resin incorporates the glassy fibers and creates the fiberglass. It is a laborious process by hand but it is surely worthy the quality of the result.
Fiberglass is very widespread within the building industry and used especially for roofs and other industrial and urban coverings. It does not get warm under the sun and keeps any closed environment insulated from heat and cold, an indispensable feature for any roof tent. Thanks to fiberglass, Autohome’s shells guarantee excellent quality not only in regard to their endurance and sound proof insulation, but also in terms of lightness and easiness to repair (avoiding this way the high costs of substitution of entire shells) This is one of the secrets that give Autohome roof tents superior quality and reliability. Wherever. Whenever. The quality of fiberglass is so great that this material is also used in the manufacturing of boats and cars, especially for bodyworks and hulls that need rigidity and stability throughout time… the best campers, for example, are the ones with single body made with fiberglass and therefore easily repairable (bodies made with ABS are indeed not very diffused anymore because of their difficult reparation processes). Thanks to its excellent qualities of lightness, robustness and resistance to decompression, fiberglass is also used for windmill blades and within the aeronautical and aerospace industry.
Autohome’s shells are designed and manufactured with the best existent material today.
No presumption of travelling to the moon (for the time being…).

ATTENTION!
NO PLASTIC
NO ABS
NO ACRILIC
100% FIBERGLASS

FIBERGLASS ADVANTAGES

MATERIAL COMPARISON TABLE

SPECIFIC
WEIGHT
g/cm³
TENSILE
STRENGTH
MPa
ELASTIC
MODULS
GPa
COEF.
OF THERMAL
EXPANSION K¯1
COEF.
OF THERMAL
CONDUCTICVITY W/mK
FIBERGLASS1,54002611 x 10¯60,35
WOOD0,72501214 x 10¯60,1
ALLUMINIUM2,7807023 x 10¯6170
STEEL7,840021012 x 10¯640
PLASTIC1,870385 x 10¯60,1

TECHNICAL DETAILS

BEDROOMS MADE TO LAST

All particulars, from the design concept, materials and components, to the safety features and insulation, have been methodically chosen and thoroughly tested in order to obtain an all-weather proof product that can be depended upon at all times. Just like the structure of a boat, we have used fibreglass to prevent it from aging, discolouring or losing its shape. Its remarkable capacity to withstand knocks and bumps can ensure durability but should the worst happen Maggiolina is easily repaired.

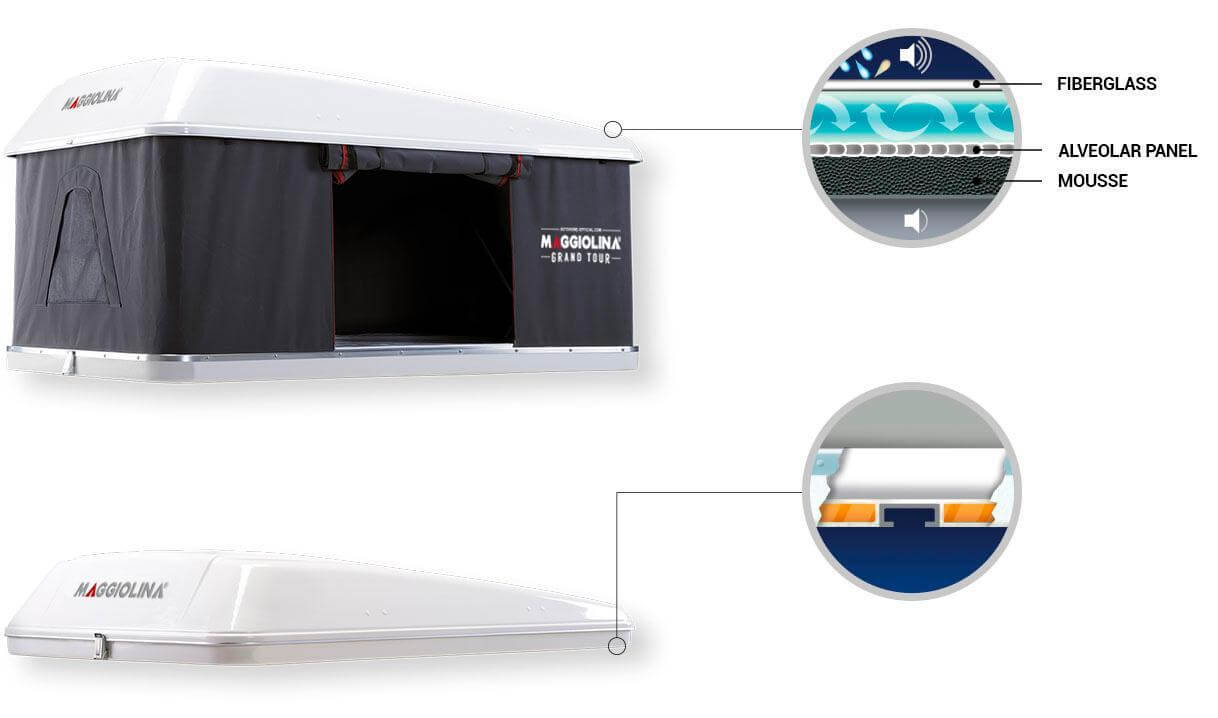

ROOF INSULATION

Roof insulation with air gap is an exclusive Autohome feature.
The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.

The “sandwich” construction base has 25mm insulation thickness, while the two “C” shaped built in guides allow easy installation of roof tent with any kind of roof cross bars (normally without any additional fixings) offering a steady and safe structure in order to withstand any off-road stresses.

Dim. 1,12 x 0,96 mm
[18×20/square inch]

The mosquito net used is in fibreglass, soft and very resistant.
It has a fine weft: 18×20 threads per square inch.
The hole size is very small: peaceful nights everywhere, whether in swampy areas, by river banks or in the presence of very small insects.

MAGGIOLINA GRAND TOUR TECHNICAL DESINGS

A.
B.
C.
D.
E.
F.
G.
A.

V= with the tent closed, this indicates the capacity (volume) of the upper shell, in litres.
The upper shell contains 2 or 3 pillows, according to the model, and other night-time accessories or personal effects.
For example, a rucksack, blankets, a beauty-case, or the ladder, the changing room, winter hood or other travel accessories can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.

B.

When choosing a roof tent, the shell height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The overall length of 210 cm provides optimum comfort and room for rucksacks or large blankets.

C.

The width (SMALL /MEDIUM) is according to the number of occupants

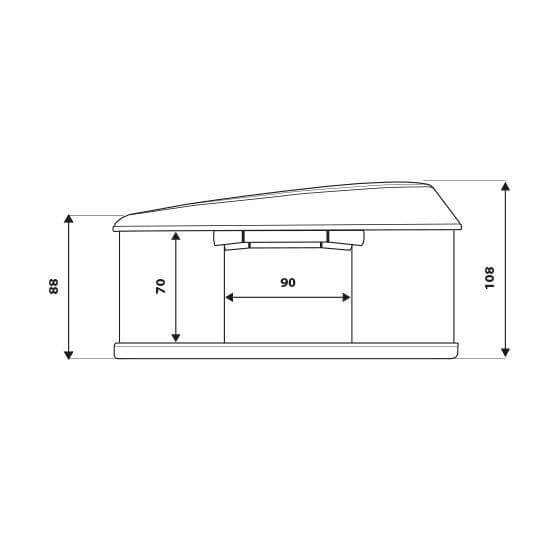

D.

The width of the door L= 75 cm is designed for easy access even if you are not as slim and nimble as you used to be (most doors at home are about 75 cm wide).

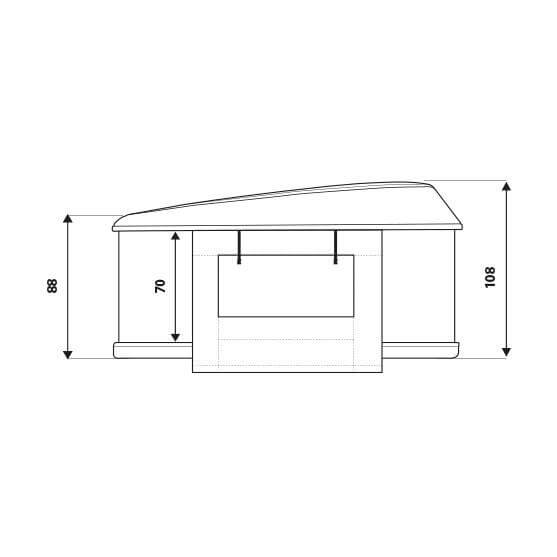

E.

The doors have arch-shaped zips for partial opening, providing privacy and improved air circulation inside the tent. When required, the areas above the doors become anti-condensation air sockets.

F.

The windows are big enough to give an excellent view and small enough not to compromise privacy.

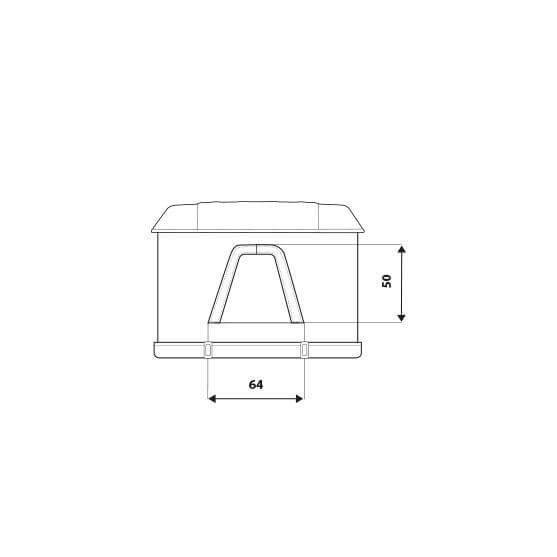

G.

Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied.

STANDARD HANDLE
HANDLE EXTENSION (On request, specify when ordering)

DESIGN MADE IN ITALY

Design Made in Italy means quality, originality and style.
A production process based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition.
The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.

A COMPLETE RANGE OF MATCHING ACCESSORIES FOR A COMFORTABLE STAY

The self-contained veranda can be set up easily and quickly, and is recommended for long stays or holidays in one location. Matches Maggiolina creating a large protected space for cooking, dining, additional sleeping room and all holiday accessories.
An extremely popular, independent structure allowing you to drive away leaving your equipment well protected.The equipment can be left in the campsite, closed and sheltered even when the vehicle is being used for a quick visit, shopping or to suss out a place to visit.

accessori_maggiolina2
accessori_maggiolina2

INDIPENDENT VERANDAH
(FOR CARS)

Art. M/05A - cm 200 x 160 x h 240

AL The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.



MORE PRIVACY WITH THE CHANGING ROOM

An additional space protected and closed on all four sides. The adjustable pared-down aluminium poles hook onto the Maggiolina quickly and without fuss. The entrance is a zipped arch opening both sides, with side ladder for easy access to the Maggiolina covering the vehicle windows. On the side opposite the entrance the cabin is fitted with a large window with mosquito net. Various heights are available according to the vehicle make and height. The standard measurements are: for cars and Sw 140 x 170 cm, for 4WDs, SUVs and vans.

CHANGING ROOM

(for cars) Art. M/12A – cm 140x170x h 170

CHANGING ROOM 4X4

(for vans and 4 wheel drives) Art. M/13A – cm 140x170x h 220

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

FEET

Art. M/09A

Four strong feet allows you to place Maggiolina on the floor if desired. Measuring 25 cm high a safe distance from floor humidity, water, insects, stones etc.
Foldable and clutter free they can be installed in any desired position. Useful in camping sites or residential areas which prohibit the entry of vehicles during the night.

AWNING

(for cars) Art.M/11A-1

AWNING 4X4

(for vans and 4 wheel drivers) Art. M/11A-2

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

Easy and quick to set up, it creates a shaded area for cooking, dining and relaxing, or – most importantly - as a shelter from the rain.

Roof size: 200x160 cm.

WINTER HOOD

Art. M/10A

Made of resin bonded nylon fibre and aluminium powder. Excellent protection from the burning effect of the suns rays, and equally useful for extra insulation in colder conditions.
Quickly attached, by Velcro strips, and removed, it can also provide additional protection in the most extreme of conditions. Can be left in situ when closing the tent.

WINGS

Art. M/W01 (for all models Small/Medium, except Grand Tour)

Art. M/W02 (for all models Large, X-long and Grand Tour series)

Entrance protection for additional shelter in case of rain. Simple, easy to use and much appreciated by customers. Made of Airtex fabric with windproof structure, aluminium and steel, space saving.

The framework is constructed from round anodised aluminium poles. Textile: AIRTEX®

UNIVERSAL SYSTEM

The exclusive Autohome security system allows all tents to be used on any vehicle: small cars, off-road vehicles, station-wagons, MPV’s (or people carriers), camper vans, and pick-up trucks... A universal, quick attachment system, allows you to position the tent safely in any position, with no risk of damage or modifications to the body of the vehicle. Various fixing kits are available to suit.

1st Advantage:

All tents are fully independent for easy installation on the car roof.

2nd Advantage:

The C-shaped steel rails integrated into the bases of all Autohome models strengthen the structure and make it possible to fix the tent to the roof bars by means of special clamps.

3rd Advantage:

Just two people (standing beside the car) can easily lift the tent and position it on the roof bars without risk to the bodywork.

4th Advantage:

The standard clamps slide along the C-shaped rails to fix the tent in the desired position. This position varies depending on the type of car, to be used as a carryall or for best appearance.

The tent bases must not be drilled for fixing onto the roof bars.

No holes are to be drilled in the roof bars to secure the tent. This operation is prohibited by current safety regulations. It is not permitted to make changes to the roof rack.

4 clamps are provided as standard for simple, easy mounting according to the rules.

Universal System Autohome is a mounting system according to the standards, certified by T.V - ID: 0000024461. Beware of imitations.

An example of a roof rack for motor cars without water channels.

Connection for off-road vehicles or motor cars with water channels.

Attachment bars for motor cars with fitted rails.

Special Order: Roof Bars or Expedition Roof Racks available in Steel or Aluminium.

CLAMPS SIZE AVAILABLE

AUTOHOME
DRIVE CALM AND SLEEP PEACEFULLY

Safety is priceless for us at Autohome and for this reason our research and development centre has always worked on two fronts: first to guarantee "no problem journeys" and second to ensure "peaceful nights".

NO PROBLEM JOURNEYS

The roof tent is a load subject to dynamic stress when driving on the road and like any other load outside the vehicle must be firmly anchored and give a guarantee of safety, in order not to become a hazard. Autohome roof tents are made
of the best materials to be solid and robust, able to withstand the stresses of the asphalt and the aerodynamic drag of the wind. They passed the stringent certification tests of the product and materials to travel years and years without problems.

AUTOHOME QUALITY TENTS CERTIFIED ALSO BY TÜV



PEACEFUL NIGHTS

The same attention we paid to dynamic security was also given to the quality of sleep. First choice materials, accurate finishes, attention to details mean that in the Autohome tent you sleep in a real bed, insulated from the heat and cold and soundproofed from rain noise.

WARNING

There are roof tents on the market that do not have any real product certification. Beware of certifications such as ISO 9001 that some sellers advertise, because they concern the company organization and are not at all a guarantee of quality and security of the tent you are going to buy.
On the contrary, Autohome roof tents have passed stringent quality tests of the materials used, carried out in the laboratories of qualified Bodies, including the German TÜV.

Il sito www.autohome-official.com utilizza i cookie (tecnici propri e di profilazione di terze parti) per garantirti una migliore esperienza di navigazione e per offrirti, quando sei online, accesso alle funzionalità offerte dai principali social network. Se selezioni "Continuare" o accedi a qualunque contenuto presente sul nostro sito senza definire le tue scelte, acconsenti all'utilizzo dei cookie. Per saperne di più e per negare il consenso ai cookie clicca qui

Questo sito utilizza i cookie per fornire la migliore esperienza di navigazione possibile. Continuando a utilizzare questo sito senza modificare le impostazioni dei cookie o cliccando su "Accetta" permetti il loro utilizzo.

Chiudi
