TENTS WITHOUT COMPROMISE

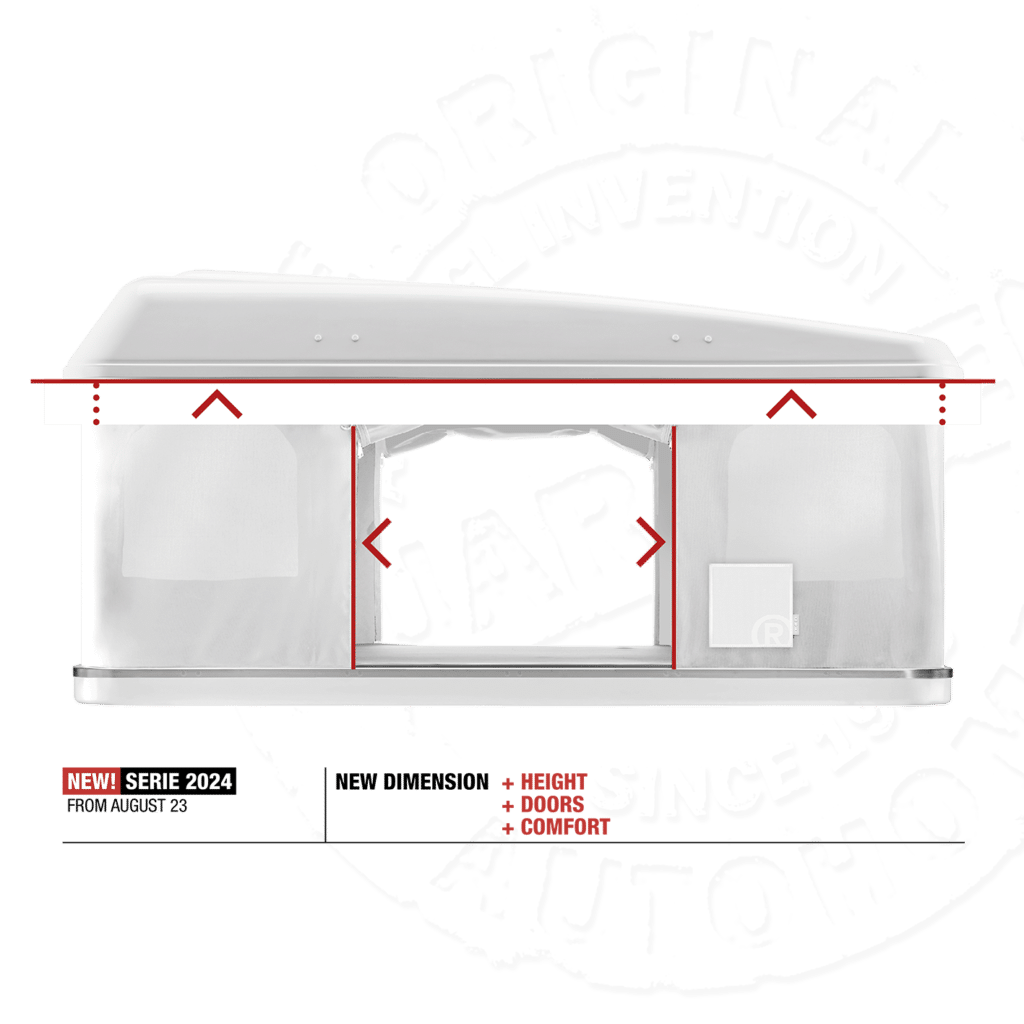

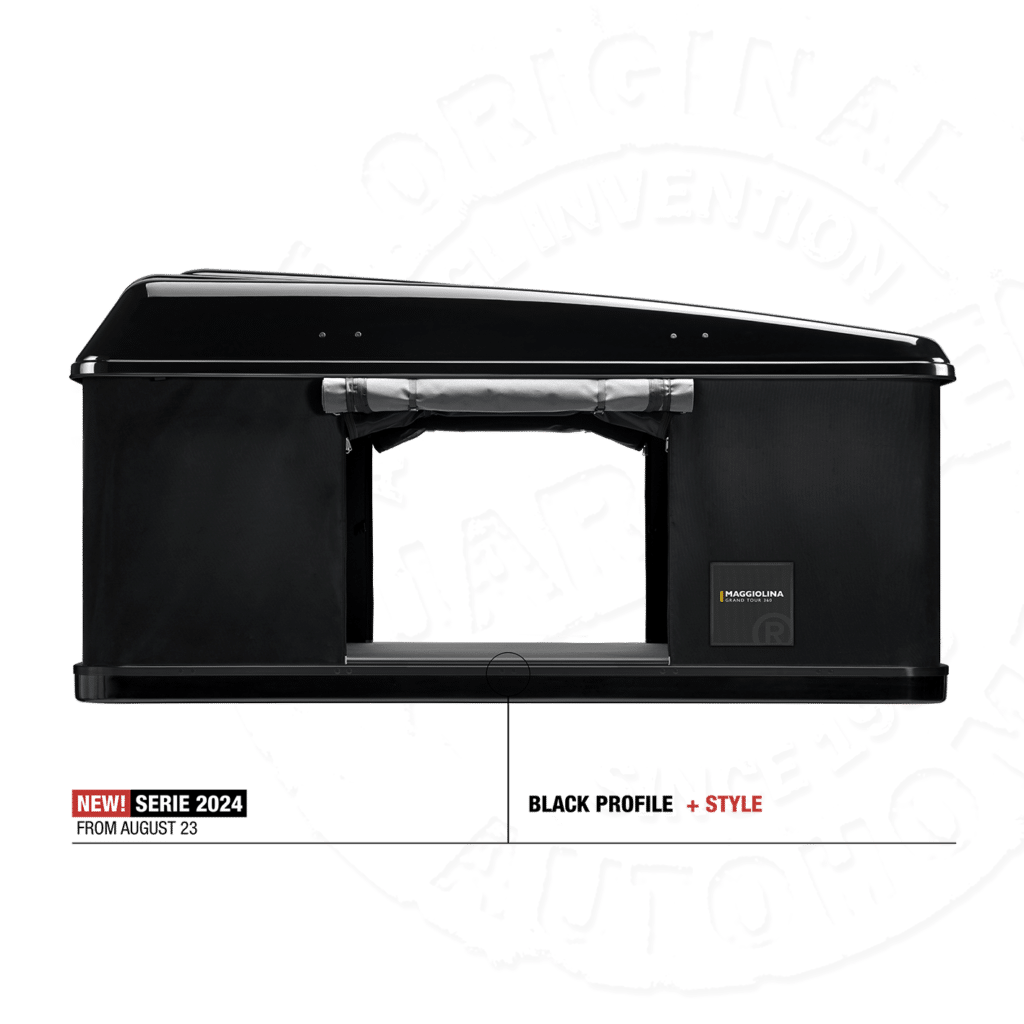

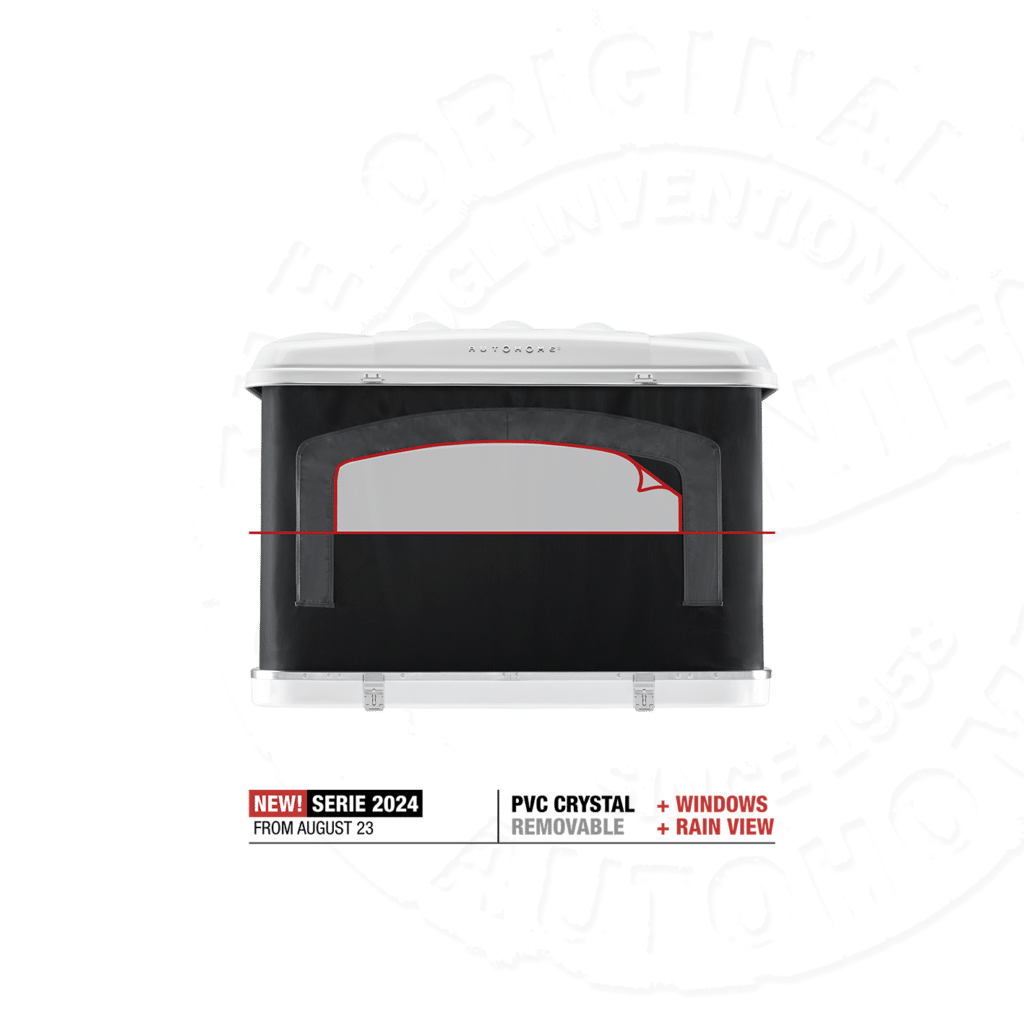

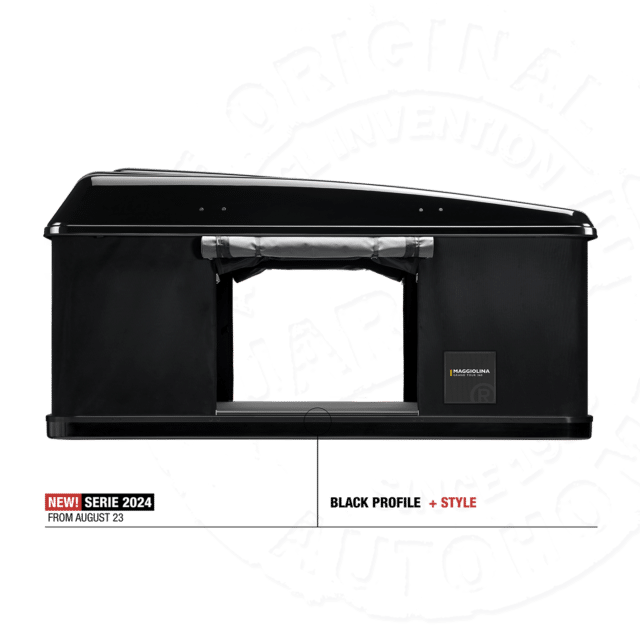

NEW! SERIE 2024
Hard shell roof top range.
If you do not want to give up on the idea of looking at the view even when you are inside a tent, Maggiolina Grand Tour 360 is for you. Four additional new windows at the corners of the tent increase the visibility provided by the doors and windows along the walls. There are now eight apertures, perfect for those who want to live in close contact with nature but protected from insects and curious eyes, thanks to the innovative ¬fiberglass “black edition” mosquito nets, which make it easy to look out but hard to look in. Privacy is guaranteed.
A hi-tech tent, with the best materials such as AIRTEX® for the side walls: waterproof yet able to expel water vapour whilst protecting against the weather. Each door and window can be darkened to keep out the light and sunshine.
Maggiolina 360 is a tent for all weather conditions: ideal in the heat due to its large windows, but perfect too in the rain and wind, when the apertures are closed.

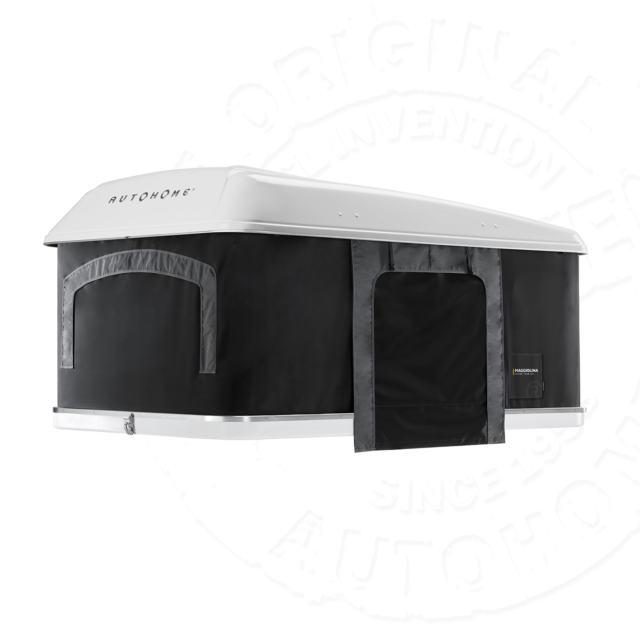

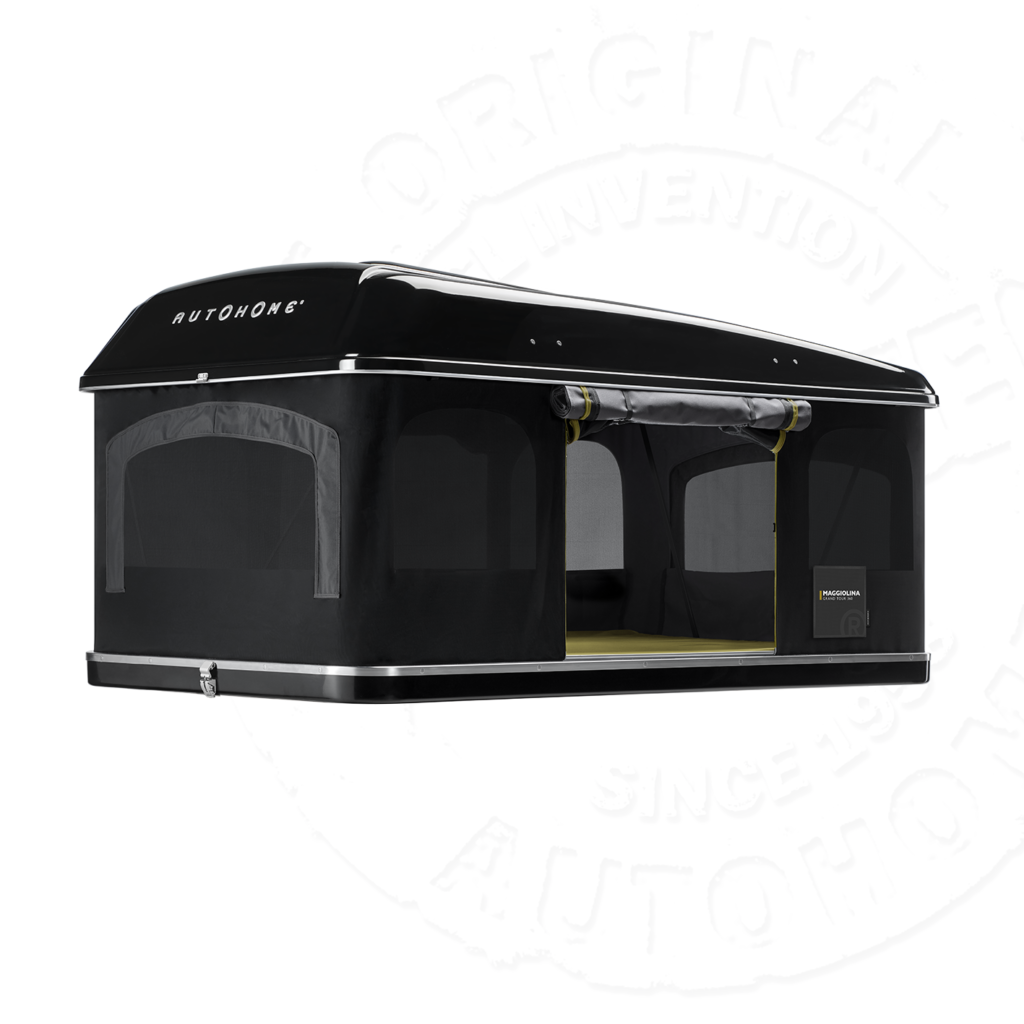

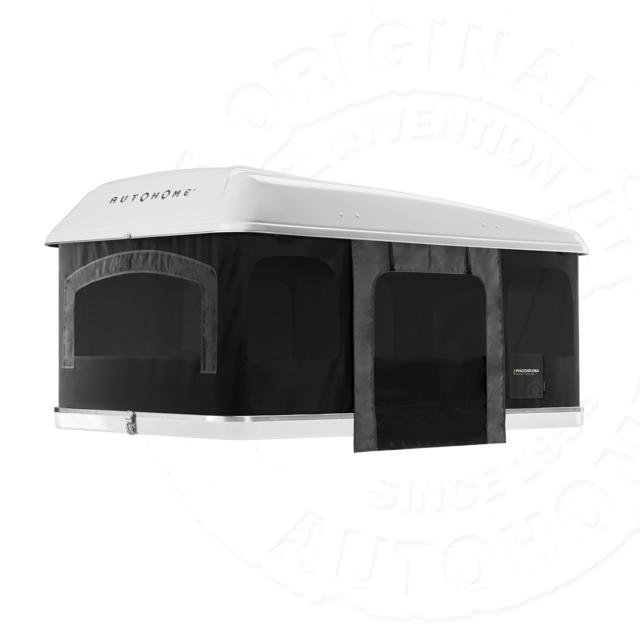

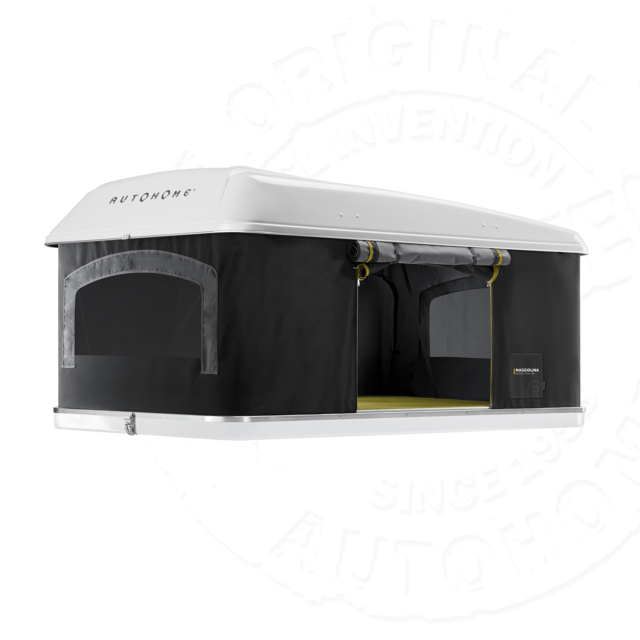

Grand Tour 360: “inside you can see outside; outside you can’t see in”.
COLOUR OF FABRICS

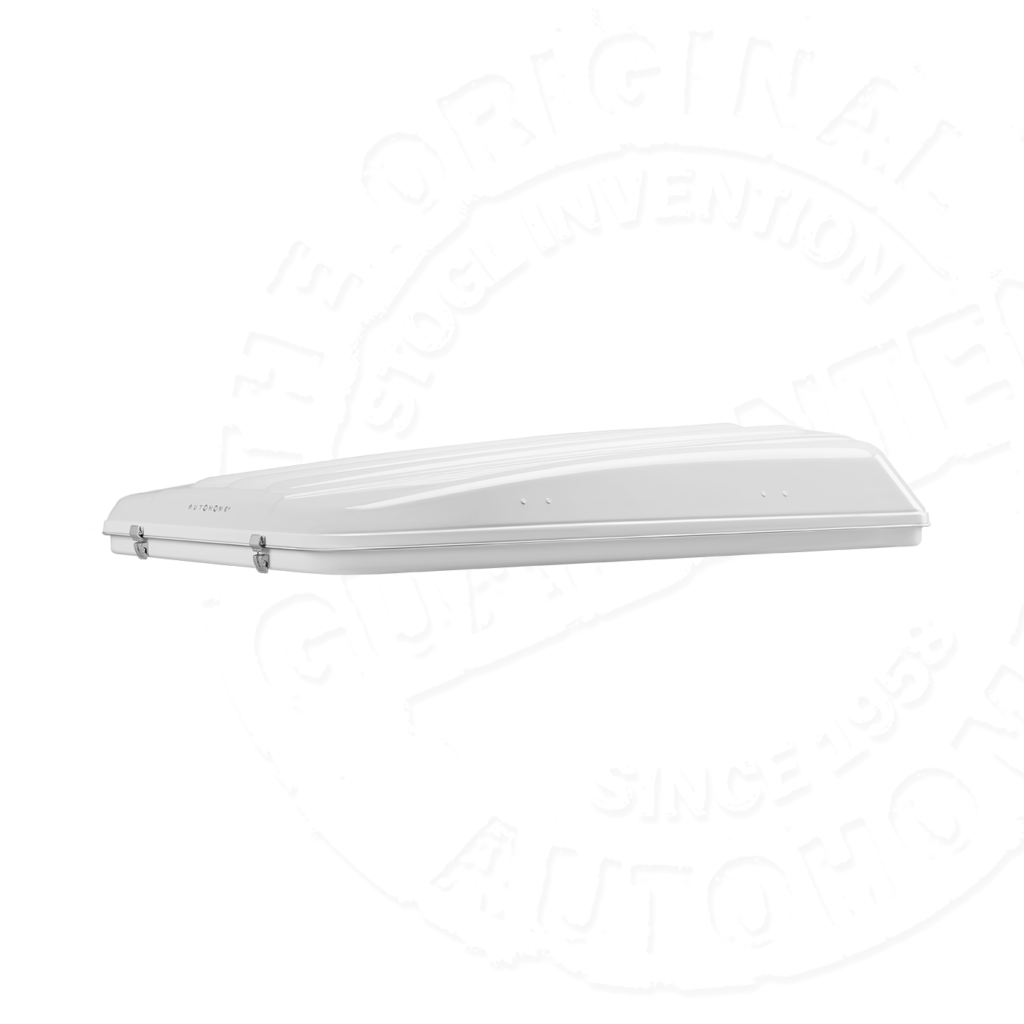

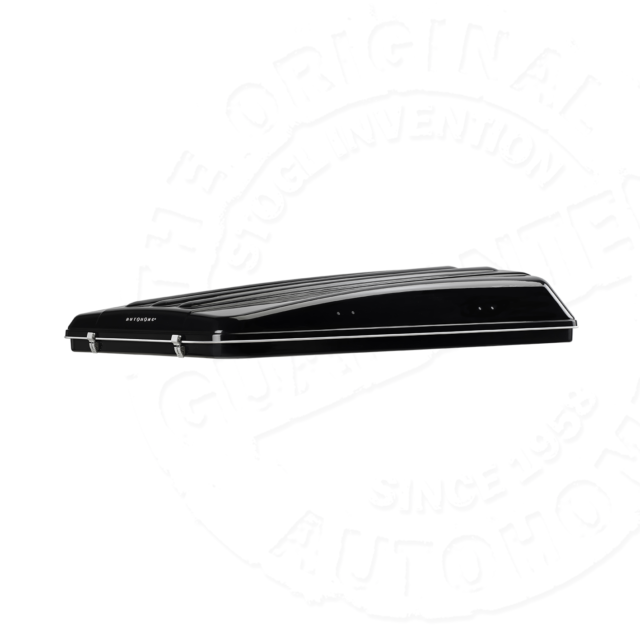

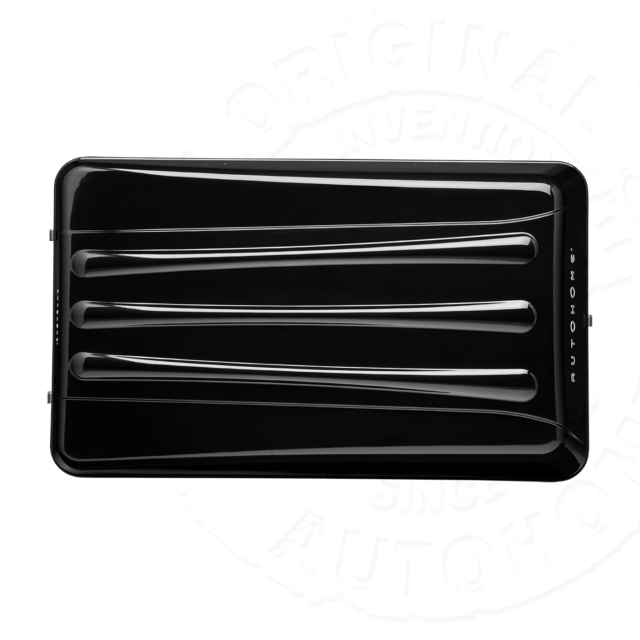

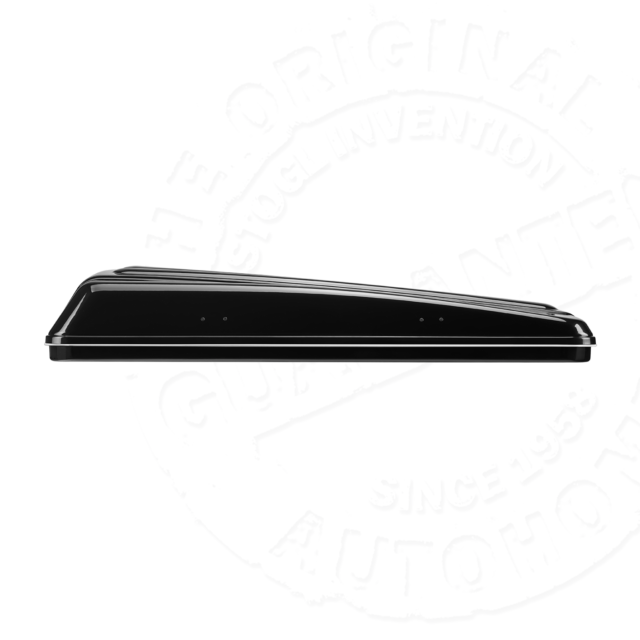

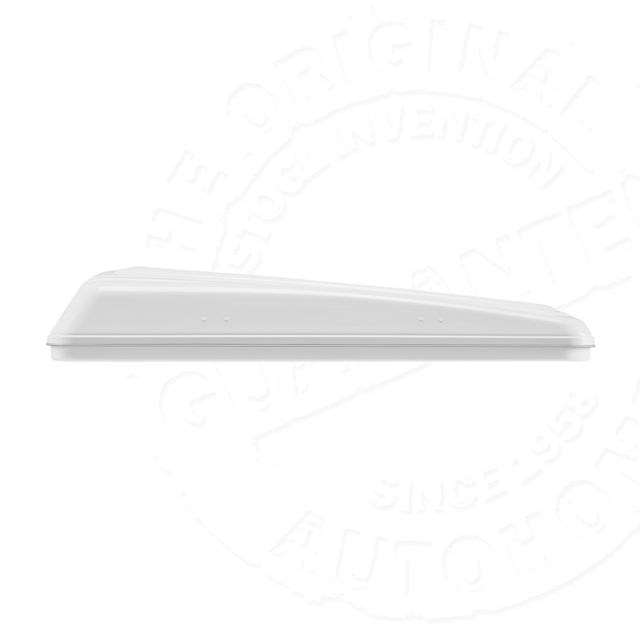

SHELL COLOURS
FIBERGLASS 100% "GLASS RENFORCED PLASTIC" - GFK IN GERMAN

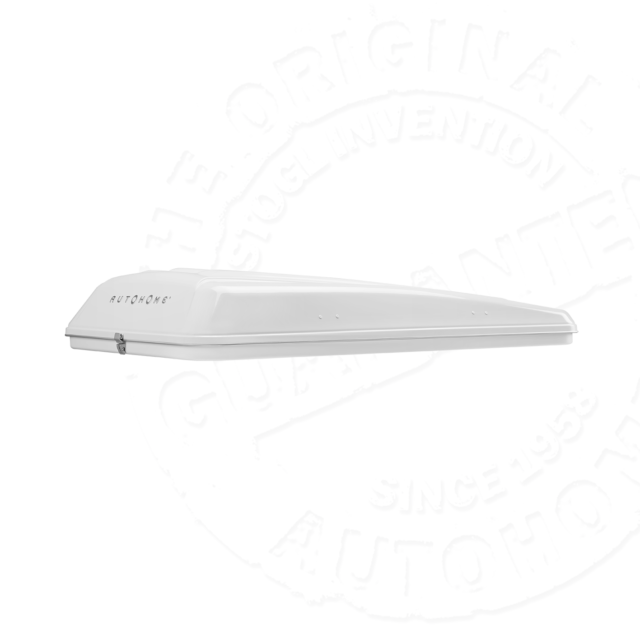

Shells are handmade by precision craftsmen, the best guarantee of quality: a quality structure, compact, pull-out, unlike ordinary plastic or similar products available on the market. The fiberglass insulates the inside from the heat and cold and can be cleaned easily (it is undamaged by aggressive cleaning agents).
MODELS AND SIZES

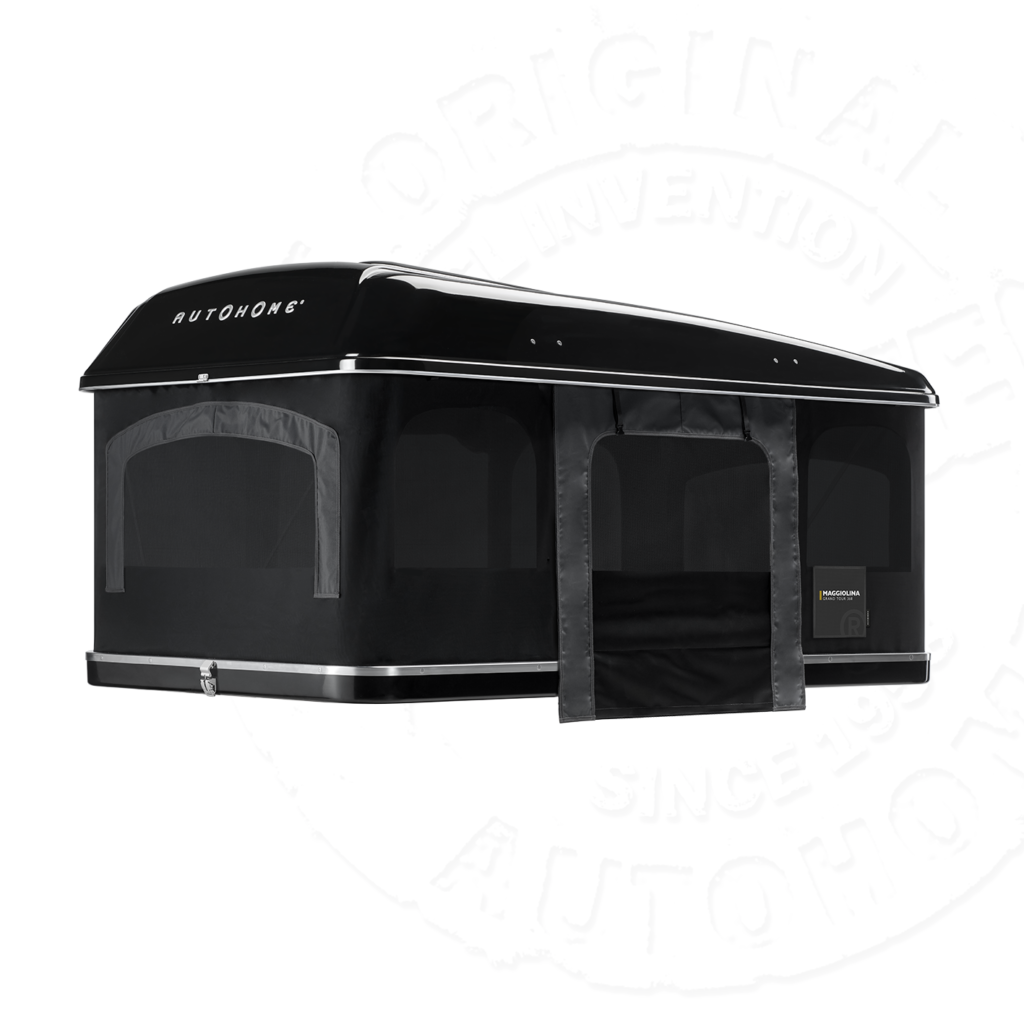

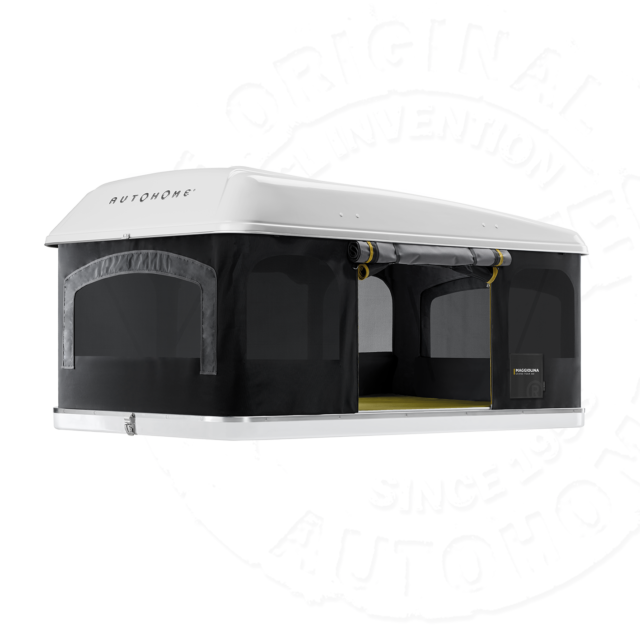

MAGGIOLINA GRAND TOUR
![]() |
SMALLAerodynamic version with spacious interior. Recommended for 2 adults. |
| Art: | M360/15 – M360BS/15 |
| Sizes: | 130 x 210 cm |
| Closed h: | 36 cm |
| Open h: | 115 cm |
| Weight: | about 60 Kg* |
| Volume: | about 344 l* |
![]() |
MEDIUMAerodynamic version with spacious interior. Recommended for 2 adults + 1 child. |
| Art: | M360/16 – M360BS/16 |
| Sizes: | 145 x 210 cm |
| Closed h: | 36 cm |
| Open h: | 115 cm |
| Weight: | about 68 Kg* |
| Volume: | about 378 l* |
![]() |
LARGEAerodynamic version with spacious interior. Recommended for 2 adults + 2 children. |
| Art: | M360/17 – M360BS/17 |
| Sizes: | 165 x 215 cm |
| Closed h: | 36 cm |
| Open h: | 115 cm |
| Weight: | about 76 Kg* |
| Volume: | about 461 l* |
![]() |
|
X-LONGOn request, Maggiolina Grand Tour |
|
![]() |
|
| THE COMPLETE RANGE MAGGIOLINA GRAND TOUR 360 Open H max 115 cm |
![]() |
SMALL Aerodynamic version with spacious interior. Recommended for 2 adults. |
| Art: | M360/15 – M360BS/15 |
| Sizes: | 130 x 210 cm |
| Closed h: | 36 cm |
| Open h: | 115 cm |
| Weight: | about 60 Kg* |
| Volume: | about 344 l* |
![]() |
MEDIUM Aerodynamic version with spacious interior. Recommended for 2 adults + 1 child. |
| Art: | M360/16 – M360BS/16 |
| Sizes: | 145 x 210 cm |
| Closed h: | 36 cm |
| Open h: | 115 cm |
| Weight: | about 68 Kg* |
| Volume: | about 378 l* |
![]() |
LARGE Aerodynamic version with spacious interior. Recommended for 2 adults + 2 children. |
| Art: | M360/17 – M360BS/17 |
| Sizes: | 165 x 215 cm |
| Closed h: | 36 cm |
| Open h: | 115 cm |
| Weight: | about 76 Kg* |
| Volume: | about 461 l* |
![]() |
X-LONG On request, Maggiolina Airlander and Airlander Plus in sizes Small and Medium are available in longer versions: L=230 cm instead of 210 cm. |
![]() |
|
| THE COMPLETE RANGE MAGGIOLINA GRAND TOUR 360 Open H max 115 cm |
BACKSTAGE
FACE TO FACE WITH AUTOHOME® AND ITS PRODUCTS


COMFORT WITHOUT COMPROMISE
Elegantly designed and aerodynamic classic models perfect on small cars and 4WD vehicles. Models equipped with opening “by handle”, soundproof and anti-condensation roof, high density sponge mattress with cotton cover, 2 to 4 pillows and adjustable aluminiun ladder for medium height vehicles..
Grand Tour: offers the most internal capacity of Maggiolina Range when closed. Wide internal volume to fit all your overnight stuff, sport bags, travel tools, backpacks and valuables. Everything sheltered in case of bad weather.
COMFORT WITHOUT COMPROMISE
Elegantly designed and aerodynamic classic models perfect on small cars and 4WD vehicles. Models equipped with opening “by handle”, soundproof and anti-condensation roof, high density sponge mattress with cotton cover, 2 to 4 pillows and adjustable aluminiun ladder for medium height vehicles..
Grand Tour: offers the most internal capacity of Maggiolina Range when closed. Wide internal volume to fit all your overnight stuff, sport bags, travel tools, backpacks and valuables. Everything sheltered in case of bad weather.



1 - Easy-to-use handle to open and close in a flash. The reliable function is assured by a mechanism consisting of screw jacks linked by a chain drive system within the structure.
2 - This opening system is reliable, lasts forever and needs no maintenance. It is operated by a removable handle. When the tent is open it will remain steady even in stormy weather conditions. In addition, it is appreciated because it adjusts the tension of the fabrics so they are always taut: even after years, the fabrics do not go limp, so stability is maintained, along with good weather-proofing and the appearance of the tent.
3 - The handle is also an anti-theft device for your contents stored inside, as the shell cannot be opened without the handle.).








1 - The aerodynamic design coupled with its ample storage capacity will allow you to safeguard all your overnight items, camping/travel accessories, sporting equipment and valuables from all weather conditions.
2 - All tent models have 2 doors (one each side) and 6 windows (one each end). Each opening is equipped with zip fasteners and mosquito mesh screens.
3 - Roll up, roll down mosquito net with two zip fasteners.
4 - Each Maggiolina has a overhead quality light (18x5 cm), with 3 super bright Leds, with pivotable reflector and easy to replace batteries. Roof is equipped with anticondensation insulation.
5 - Maggiolina has three “self-adjustable” locks to offer the perfect locking even after years.
6 - All tent models are equipped with two doors as standard, one each side, giving the user a choice for entry and exit as well as complete through ventilation of the tent. The Grand Tour range has 2 large French windows, wider than standard: L= 90 cm rather than 75 cm. Doors with adjustable openings, for greater air circulation without forfeiting privacy. Adjustable doors for greater air circulation without forfeiting privacy.
7 - Protection sheet fitted to the base of the door giving greater insulation and protection from dust, rain and cold.
8 - The aluminium ladder has very small overall dimensions. The antiskid unit is normally supplied with the tent.







9 - As standard, the automatic spring device blocks the ladder when it is open. The risk of slipping is prevented and the ladder is stable and safe on any terrain. Top of range versions, further equipped and with more optional than the classic version.
10 - 11 - 12 - Entry and exit is made using either of the 2 doors* with vertical zip fasteners. A second, additional, arc zip fastener is also fitted for partial door opening giving privacy and ventilation which can help eliminate condensation.
13 - Elastic straps assist in folding the fabric when closing.
14 - Ladder storage bag.
15 - Nécessaires storage: a new solution applied to the inner ceiling, equipped with closeable pockets.


16 - 17 - Kit Fix (Art. K/F) - Grand Tour Small and Medium versions are configured for roof bars using ‘Kit Fix’ Art. K/F (not supplied) suitable for transporting sporting or camping equipment. > Instructions
HIGH TECH TEXTILES
Condensation is a natural phenomenon in a campsite tent. When the outside temperature falls below the temperature inside the tent, the moisture in the air condenses on the inside walls of the tent in the form of water droplets. This usually happens in the evening, at night or at high altitude when the fabric is coldest. On the basis of many years of experience with the best materials, Autohome has chosen high-quality Airtex® for its new Airlander Plus 360° X-Large, Grand Tour 360° and Airtop 360° models. Airtex® is extremely versatile, is waterproof and strong, and transmits water vapour rapidly, removing it from inside the tent. So condensation is no longer a problem.
THE TRANSMISSION OF WATER VAPOUR

Transmission speed: 440g/mq/24hrs
Airtex® is a fabric that does not trap water vapour inside the tent but removes it naturally. This is the great difference with plasticized polyester, which is airtight and therefore creates moisture and condensation.
HIGH TECH TEXTILES
Condensation is a natural phenomenon in a campsite tent. When the outside temperature falls below the temperature inside the tent, the moisture in the air condenses on the inside walls of the tent in the form of water droplets. This usually happens in the evening, at night or at high altitude when the fabric is coldest. On the basis of many years of experience with the best materials, Autohome has chosen high-quality Airtex® for its new Airlander Plus 360° X-Large, Grand Tour 360° and Airtop 360° models. Airtex® is extremely versatile, is waterproof and strong, and transmits water vapour rapidly, removing it from inside the tent. So condensation is no longer a problem.
THE TRANSMISSION OF WATER VAPOUR

Transmission speed: 440g/mq/24hrs
Airtex® is a fabric that does not trap water vapour inside the tent but removes it naturally. This is the great difference with plasticized polyester, which is airtight and therefore creates moisture and condensation.
ARTISAN QUALITY IN MASSPRODUCTION
As for most of the versions of Autohome roof tents, the shells are made of fiberglass.
Fiberglass is a particular fabric fiber interweaved and soaked in resinous liquid substances or polyester.
This material is also known as GRP, glass reinforced plastic (GFK in German).
The above mentioned really expensive liquid resins, once adequately mixed with catalyzing or accelerating additives, are manually spread with hairy roller brushes on a glassy fabric previously lay on open stamps.
In this way, while solidifying, the liquid resin incorporates the glassy fibers and creates the fiberglass.
It is a laborious process by hand but it is surely worthy the quality of the result.
Fiberglass is very widespread within the building industry and used especially for roofs and other industrial and urban coverings.
It does not get warm under the sun and keeps any closed environment insulated from heat and cold, an indispensable feature for any roof tent.
Thanks to fiberglass, Autohome’s shells guarantee excellent quality not only in regard to their endurance and sound proof insulation, but also in terms of lightness and easiness to repair (avoiding this way the high costs of substitution of entire shells) This is one of the secrets that give Autohome roof tents superior quality and reliability.
Wherever. Whenever. The quality of fiberglass is so great that this material is also used in the manufacturing of boats and cars, especially for bodyworks and hulls that need rigidity and stability throughout time… the best campers, for example, are the ones with single body made with fiberglass and therefore easily repairable (bodies made with ABS are indeed not very diffused anymore because of their difficult reparation processes).
Thanks to its excellent qualities of lightness, robustness and resistance to decompression, fiberglass is also used for windmill blades and within the aeronautical and aerospace industry.
Autohome’s shells are designed and manufactured with the best existent material today.
No presumption of travelling to the moon (for the time being…).










FIBERGLASS ADVANTAGES
MATERIAL COMPARISON TABLE
| SPECIFIC WEIGHT g/cm³ | TENSILE STRENGTH MPa | ELASTIC MODULS GPa | COEF. OF THERMAL EXPANSION K¯1 | COEF. OF THERMAL CONDUCTICVITY W/mK | |
|---|---|---|---|---|---|
| FIBERGLASS | 1,5 | 400 | 26 | 11 x 10¯6 | 0,35 |
| WOOD | 0,7 | 250 | 12 | 14 x 10¯6 | 0,1 |
| ALLUMINIUM | 2,7 | 80 | 70 | 23 x 10¯6 | 170 |
| STEEL | 7,8 | 400 | 210 | 12 x 10¯6 | 40 |
| PLASTIC | 1,8 | 70 | 3 | 85 x 10¯6 | 0,1 |
BEDROOMS MADE TO LAST
All particulars, from the design concept, materials and components, to the safety features and insulation, have been methodically chosen and thoroughly tested in order to obtain an all-weather proof product that can be depended upon at all times. Just like the structure of a boat, we have used fibreglass to prevent it from aging, discolouring or losing its shape. Its remarkable capacity to withstand knocks and bumps can ensure durability but should the worst happen Maggiolina is easily repaired.
BEDROOMS MADE TO LAST
All particulars, from the design concept, materials and components, to the safety features and insulation, have been methodically chosen and thoroughly tested in order to obtain an all-weather proof product that can be depended upon at all times. Just like the structure of a boat, we have used fibreglass to prevent it from aging, discolouring or losing its shape. Its remarkable capacity to withstand knocks and bumps can ensure durability but should the worst happen Maggiolina is easily repaired.

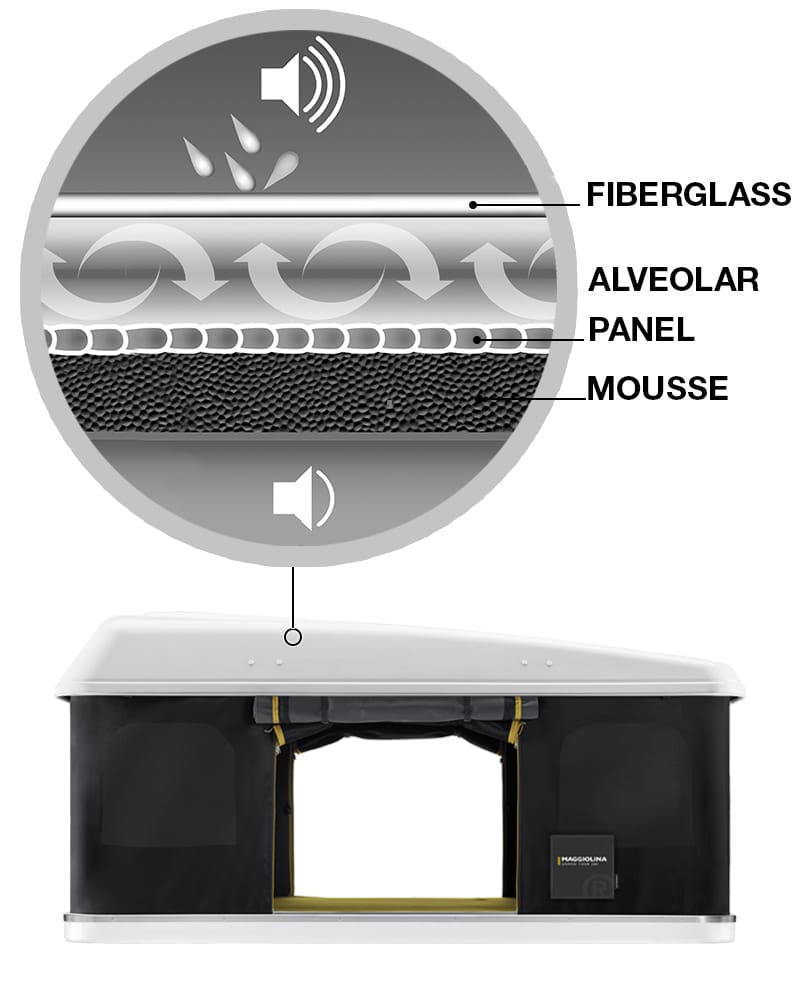

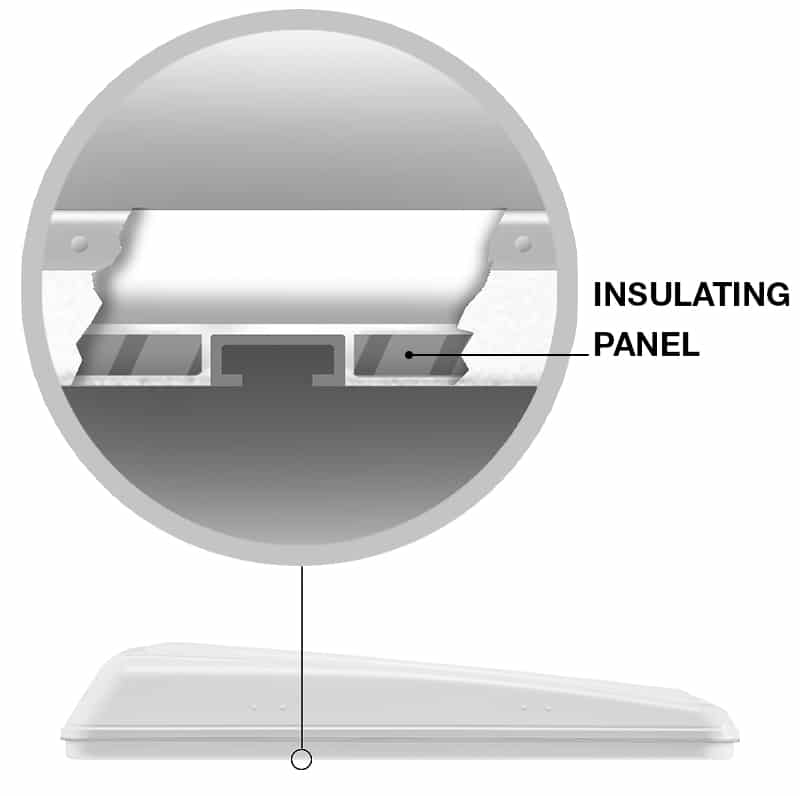

ROOF INSULATION

Roof insulation with air gap is an exclusive Autohome feature.
The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.
The “sandwich” construction base has 25mm insulation thickness, while the two “C” shaped built in guides allow easy installation of roof tent with any kind of roof cross bars (normally without any additional fixings) offering a steady and safe structure in order to withstand any off-road stresses.

OUTSIDE YOU CAN’T SEE INSIDE, INSIDE YOU CAN SEE OUTSIDE
Dim. 0,5 x 0,7 mm [13,6×11/cm]
The mosquito net has an extraordinary blackout feature that provides more privacy to the occupants of the tent. Outside you can’t see inside, inside you can see outside.
The mosquito net is very thick.
It is incomparable to the standard and it features an innovative weave so fine that it does not allow the passage of any kind of insects. Quiet nights in marshy areas, near watercourses, on the banks of rivers or in areas where the presence of microscopic mosquitoes is very high.
ROOF INSULATION
Roof insulation with air gap is an exclusive Autohome feature.
The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.
The “sandwich” construction base has 25mm insulation thickness, while the two “C” shaped built in guides allow easy installation of roof tent with any kind of roof cross bars (normally without any additional fixings) offering a steady and safe structure in order to withstand any off-road stresses.
OUTSIDE YOU CAN'T SEE INSIDE, INSIDE YOU CAN SEE OUTSIDE
Dim. 0,5 x 0,7 mm [13,6×11/cm]
The mosquito net has an extraordinary blackout feature that provides more privacy to the occupants of the tent. Outside you can't see inside, inside you can see outside.
The mosquito net is very thick.
It is incomparable to the standard and it features an innovative weave so fine that it does not allow the passage of any kind of insects. Quiet nights in marshy areas, near watercourses, on the banks of rivers or in areas where the presence of microscopic mosquitoes is very high.

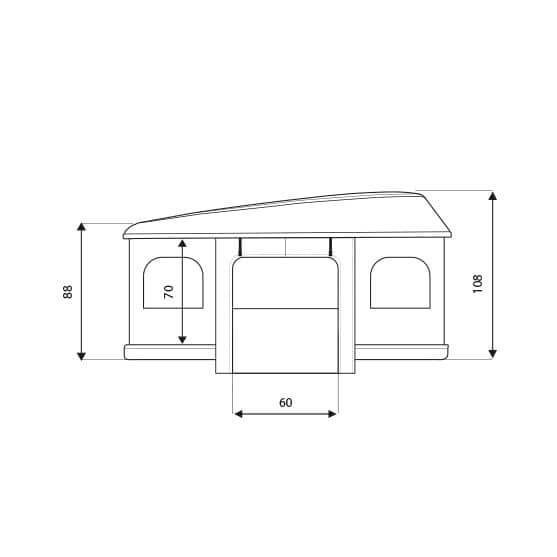

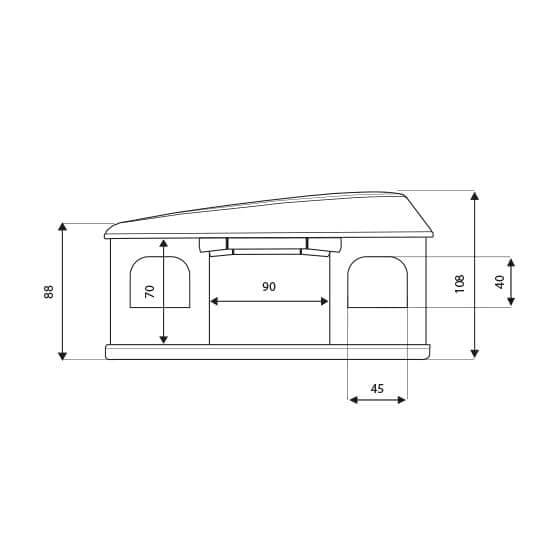

MAGGIOLINA GRAND TOUR 360 TECHNICAL DESINGS
NEW! 2024







V= with the tent closed, this indicates the capacity (volume) of the upper shell, in litres.
The upper shell contains 2,3 or 4 pillows, according to the model, and other night-time accessories or personal effects.
For example, a rucksack, blankets, a beauty-case, or the ladder, the changing room, winter hood or other travel accessories can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.
When choosing a roof tent, the shell height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The overall length of 210 cm provides optimum comfort and room for rucksacks or large blankets.
Note: the dimensions indicated refer to the size of the shells.
Consider that, the shells being made with handcraft techniques in different moulds and configurations (Maggiolina / Columbus / Airtop), their length and width can vary +/- 30 mm.
The width (SMALL /MEDIUM) is according to the number of occupants
The width of the door L= 75 cm is designed for easy access even if you are not as slim and nimble as you used to be (most doors at home are about 75 cm wide).
The doors have arch-shaped zips for partial opening, providing privacy and improved air circulation inside the tent. When required, the areas above the doors become anti-condensation air sockets.
The windows are big enough to give an excellent view and small enough not to compromise privacy.
Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied.
