We are pleased to announce that Autohome® successfully passed the following Automotive tests carried out by the entity in charge of TÜV SÜD.

MECHANICS ON LADDER FOR ROOF TENTS

Form: ITA_F_09.01E
TEST REPORT NO. MES1830761A00TR

DEFLECTION TEST

LATERAL DEFLECTION TEST OF THE LADDER

7.1.2 TEST RESULTS

L (TOTAL) = 2000 mm
L = 1600 mm
Maximum deflection permitted = (L x 0,5%) 8 mm
Deflection under load = 9,67 mm
Deflection after load = 0,53 mm
Permanent deflection (after 1 minute) = 0,49 mm

Test Result: PASS

BENDING TEST

BENDING TEST OF THE STYLES

7.2.2 TEST RESULTS

F max Permitted = 12,8 mm

Deflection under load = 16,49 mm
Deflection after load = 0,32 mm
Permanent deflection (after 1 minute) = 0,24 mm

Test Result: PASS

7.2.2 TEST RESULTS

F max Permitted = 12,8 mm

Deflection under load = 16,49 mm
Deflection after load = 0,32 mm
Permanent deflection (after 1 minute) = 0,24 mm

Test Result: PASS

TORSION TEST

TORSION TEST OF ROUNGS AND STEPS

7.3.2 TEST RESULTS

Starting measurement (A) = 7,2°
Measure after test (B) = 6,3°
Test Result (A-B): 0,9°

Test Result: PASS

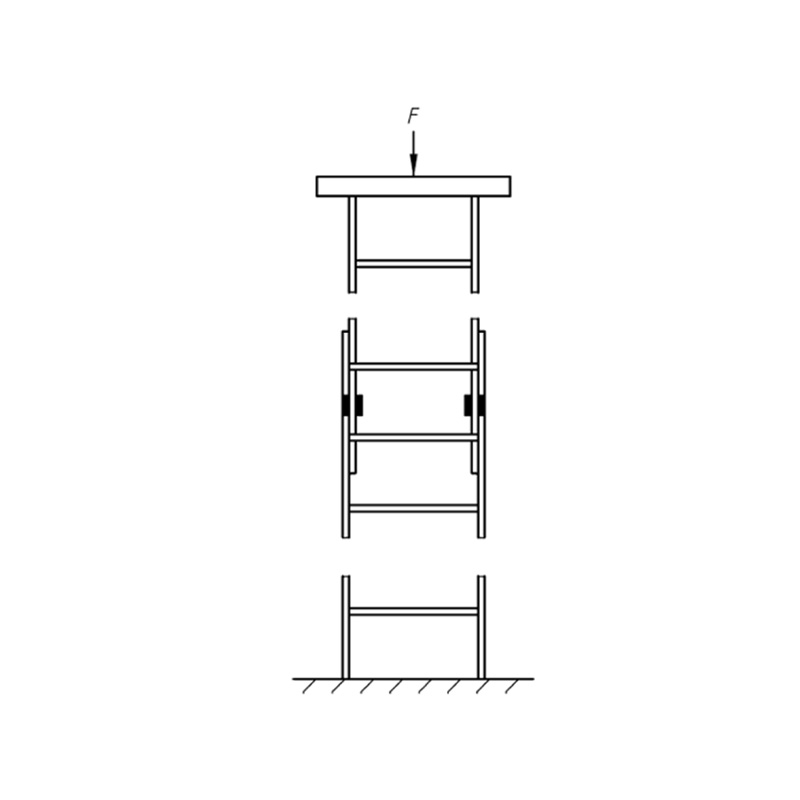

LADDER TEST

TEST FOR LADDER RUNG / STEP HOOKS

LADDER TEST

TEST FOR LADDER RUNG / STEP HOOKS

7.4.2 TEST RESULTS

Maximum total load of the ladder (A) = 120 kg (~1200 N)
Test load (A x 1,5) = 1800 N applied for 1 minute.

Test Result: PASS
