MAGGIOLINA® EXTREME

THE ORIGINAL BY AUTOHOME®

THE NEW SERIES


NEW! SERIE 2024


Hard shell roof top range.
Maggiolina Extreme is a new and revolutionary roof tent for lovers of off-road adventure: with a new design and new colour; it incorporates a new style roof rack for all your sporting or essential travelling equipment making it ideal for weekend trips, holidays and adventures on and off roads the world over. With Maggiolina Extreme, roof tents take on a new meaning: freedom, strength and unbeatable comfort.
For a holiday, weekend away or an extreme journey, Maggiolina Extreme is a roof tent for any occasion: the spirit of freedom and adventure.
Autohome: “ A simple silhouette and a great look "

COLOUR OF FABRICS

Carbon

SHELL COLOURS

Black

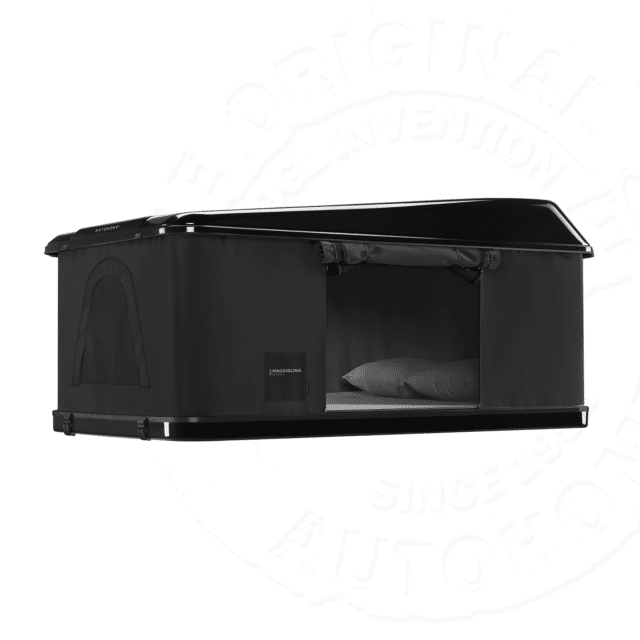

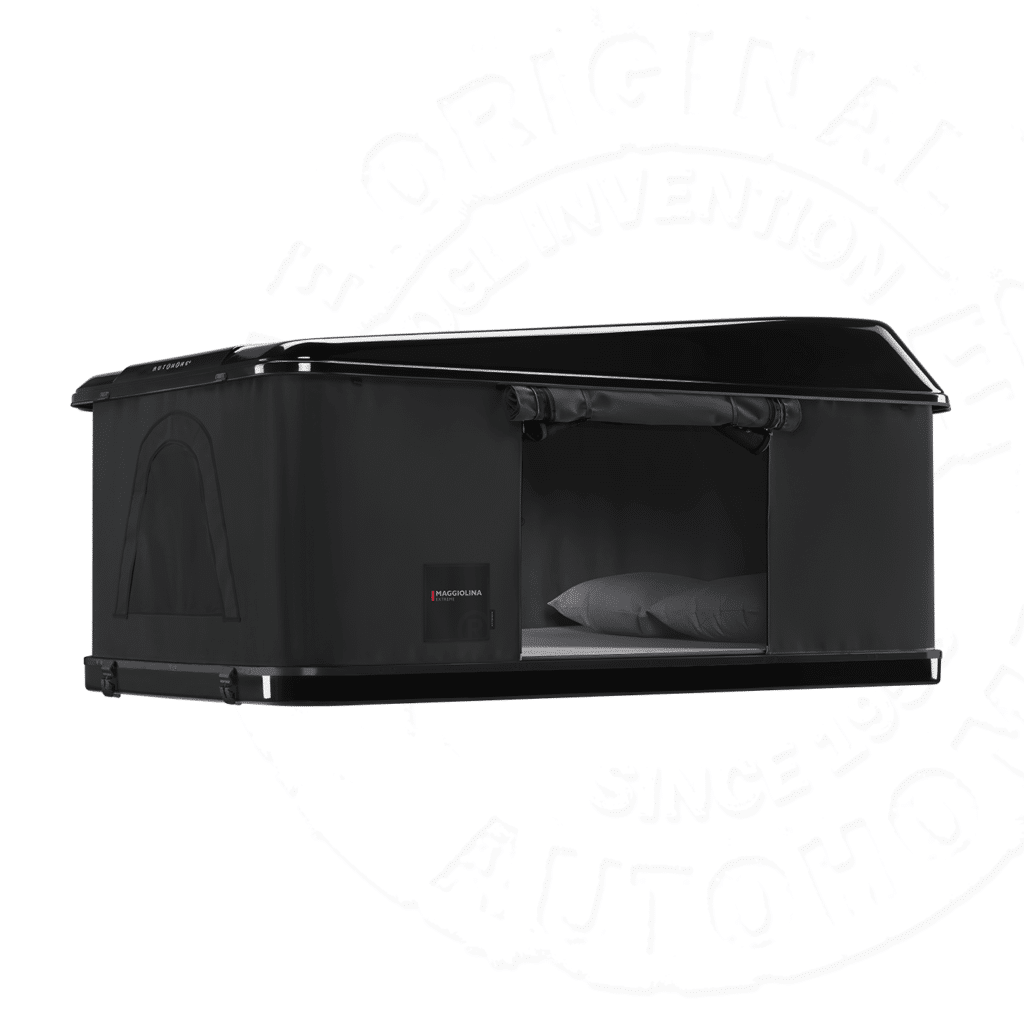

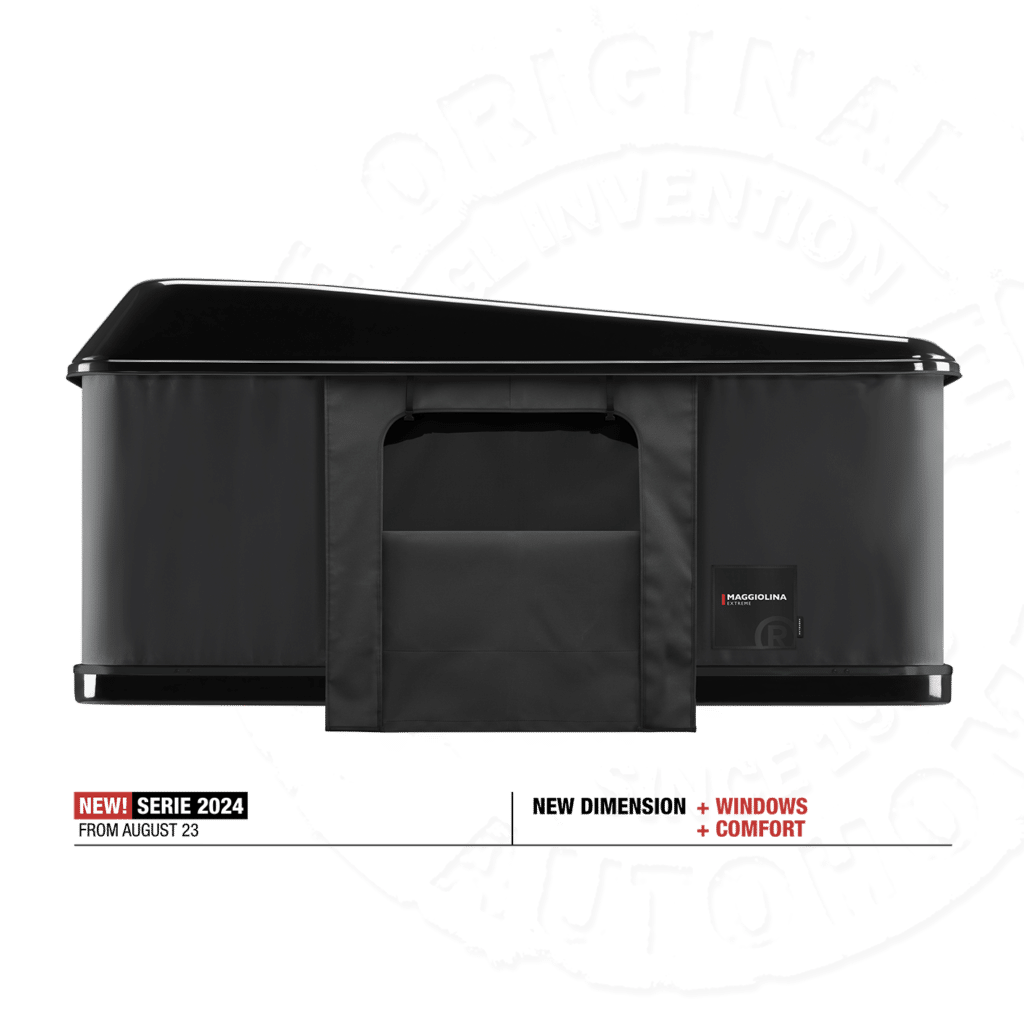

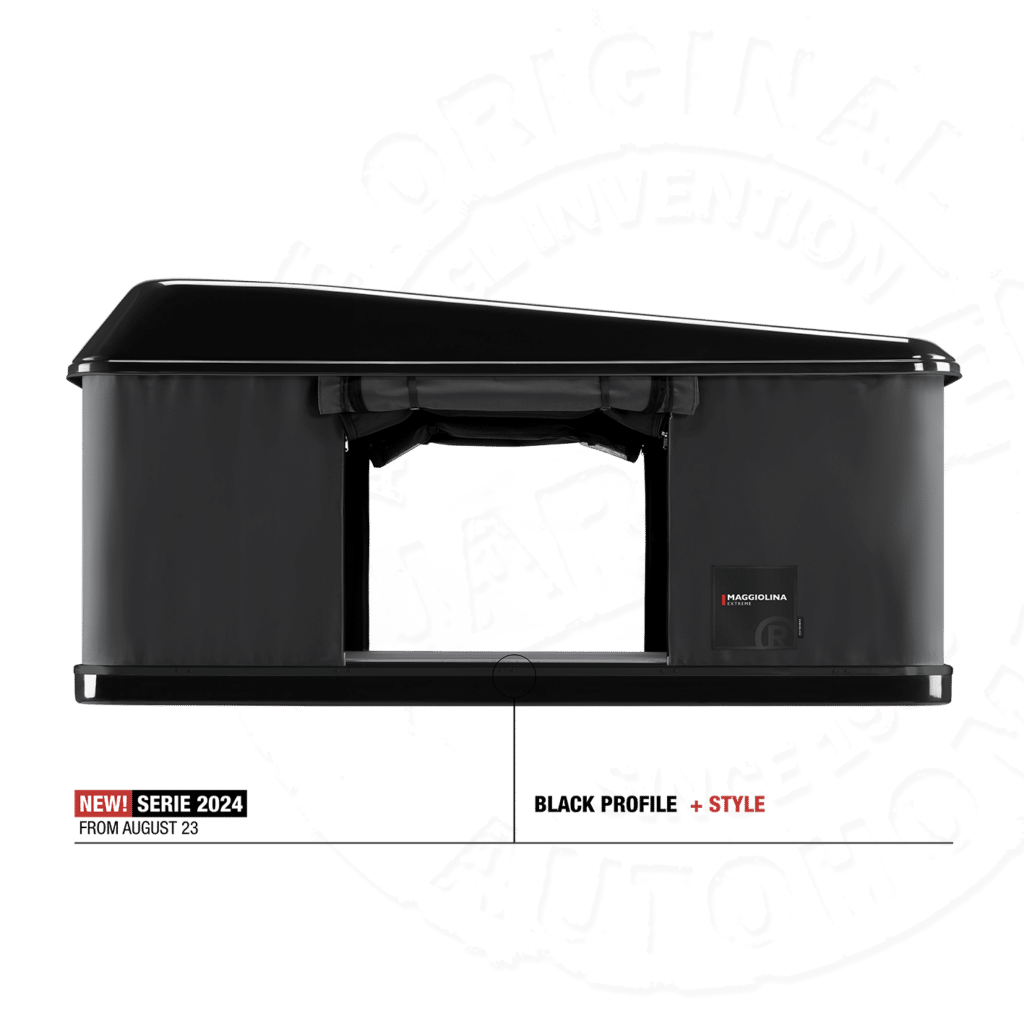

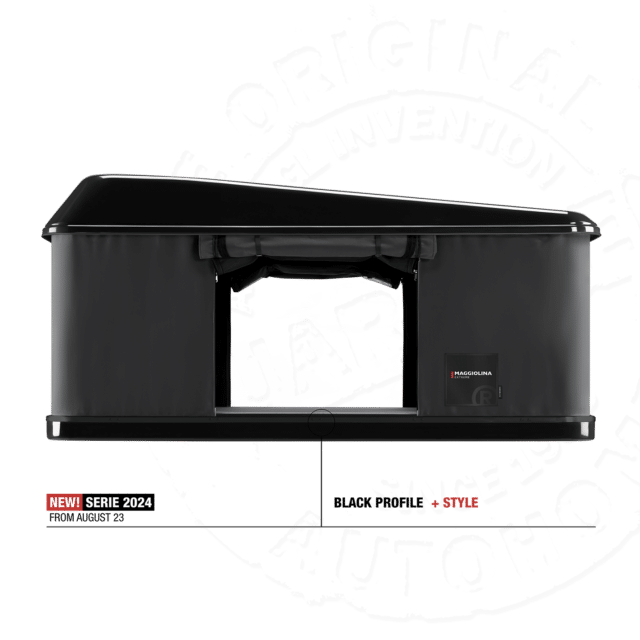

NEW - Maggiolina Extreme Black Storm

exclusive Australian line. It’s become part of the Autohome range.
Colours: Black Storm Shells and Carbon Colour fabric.

EXTREME FOREST

È il modello ideale per chi vuole mimetizzarsi nella natura: ambientalisti, tecnici di ripresa e appassionati di safari fotografici. Si tratta di una variante del modello Extreme: il colore antiriflesso dei gusci, la tinta dei tessuti e le finiture interne sono all’insegna della discrezione e del mimetismo: un dettaglio che farà felici gli amanti del bird-watching, particolarmente attenti a non spaventare gli animali.

FIBERGLASS 100% "GLASS RENFORCED PLASTIC" - GFK IN GERMAN

Handmade

Shells are handmade by precision craftsmen, the best guarantee of quality: a quality structure, compact, pull-out, unlike ordinary plastic or similar products available on the market. The fiberglass insulates the inside from the heat and cold and can be cleaned easily (it is undamaged by aggressive cleaning agents). Strength, reliability, comfort, quality: Maggiolina roof tents are all this and more.

MODELS AND SIZES
MAGGIOLINA EXTREME

SMALL

The exclusive model with roof rack attachment built into the top.
Recommended for two adults.

Art: MBS/05
Maggiolina Extreme
Sizes: 130 x 210 cm
Closed hh: 33 cm
Open h: 115 cm
Weight: about 66 Kg*
Volume: about 203 l*

MEDIUM

The exclusive model with roof rack attachment built into the top.
Recommended for two adults and a child.

Art: MBS/06
Maggiolina Extreme Medium
Sizes: 145 x 210 cm
Closed h: 33 cm
Open h: 115 cm
Weight: about 71 Kg*
Height: about 228 l*
THE COMPLETE RANGE
MAGGIOLINA EXTREME

Open H max 115 cm
With the special “C” shaped guides built into the top, you can fit specific roof racks to hold
items such as canoes or surfboards without any additional attachments.
Max 25 kg (see the istructions).
SMALL
The exclusive model with roof rack attachment built into the top.
Recommended for two adults.
Art: MBS/05
Maggiolina Extreme
Sizes: 130 x 210 cm
Closed hh: 33 cm
Open h: 115 cm
Weight: about 66 Kg*
Volume: about 203 l*
MEDIUM
The exclusive model with roof rack attachment built into the top.
Recommended for two adults and a child.
Art: MBS/06
Maggiolina Extreme Medium
Sizes: 145 x 210 cm
Closed h: 33 cm
Open h: 115 cm
Weight: about 71 Kg*
Height: about 228 l*
THE COMPLETE RANGE
MAGGIOLINA EXTREME

Open H max 115 cm


With the special “C” shaped guides built into the top, you can fit specific roof racks to hold
items such as canoes or surfboards without any additional attachments. Max 25 kg (see the
istructions).

BACKSTAGE

FACE TO FACE WITH AUTOHOME® AND ITS PRODUCTS

CRISTINA FONTANESI
EXPORT SALES
STEVE OGGIE EGHE
ASSEMBLY DEPARTMENT
PIERANGELA MARCHINI
PURCHASING MANAGER
ALESSANDRO LEONI
PRODUCT MANAGER
SILVIA SARZI
HEAD OF LOGISTICS STAFF
BENITO GENOLI
FIBERGLASS DEPARTMENT
TIZIANA ORTONOVI
ADMINISTRATION DEPARTMENT
Autohome Dachzelt - Rainforest Roof Top Tents

COMFORT WITHOUT COMPROMISE

Elegantly designed and aerodynamic classic models perfect on small cars and 4WD vehicles. Models equipped with opening “by handle”, soundproof and anti-condensation roof, high density sponge mattress with cotton cover, 2 to 4 pillows and adjustable aluminiun ladder for medium height vehicles.

Maggiolina Tech-TV

COMFORT WITHOUT COMPROMISE

Elegantly designed and aerodynamic classic models perfect on small cars and 4WD vehicles. Models equipped with opening “by handle”, soundproof and anti-condensation roof, high density sponge mattress with cotton cover, 2 to 4 pillows and adjustable aluminiun ladder for medium height vehicles.

Maggiolina Tech-TV
Maggiolina Draw - Roof Top Tents by Autohome
Maggiolina Draw - Roof Top Tents by Autohome
Maggiolina Draw - Roof Top Tents by Autohome

1 - Easy-to-use handle to open and close in a flash. The reliable function is assured by a mechanism consisting of screw jacks linked by a chain drive system within the structure.

2 - This opening system is reliable, lasts forever and needs no maintenance. It is operated by a removable handle. When the tent is open it will remain steady even in stormy weather conditions. In addition, it is appreciated because it adjusts the tension of the fabrics so they are always taut: even after years, the fabrics do not go limp, so stability is maintained, along with good weather-proofing and the appearance of the tent.

3 - The handle is also an anti-theft device for your contents stored inside, as the shell cannot be opened without the handle.).

Autohome Dachzelt - Maggiolina Airlander
Autohome Dachzelt - Roof Top Tents Osram light
Closing Clip - Roof Top Tents by Autohome

1 - The aerodynamic design coupled with its ample storage capacity will allow you to safeguard all your overnight items, camping/travel accessories, sporting equipment and valuables from all weather conditions.

2 - All tent models have 2 doors (one each side) and 2 windows (one each end). Each opening is equipped with zip fasteners and mosquito mesh screens.

3 - Roll up, roll down mosquito net with two zip fasteners.

4 - Each Maggiolina has a overhead quality light (18x5 cm), with 3 super bright Leds, with pivotable reflector and easy to replace batteries. Roof is equipped with anticondensation insulation.

5 - Maggiolina has three “self-adjustable” locks to offer the perfect locking even after years.

6 - All tent models are equipped with two doors as standard, one each side, giving the user a choice for entry and exit as well as complete through ventilation of the tent.

7 - Protection sheet fitted to the base of the door giving greater insulation and protection from dust, rain and cold.

8 - The aluminium ladder has very small overall dimensions. The antiskid unit is normally supplied with the tent.

Autohome Dachzelt - Roof Top Tents
Autohome Dachzelt - Roof Top Tents
Autohome Dachzelt - Roof Top Tents instructions
Autohome Dachzelt - Roof Top Tents how to
Autohome Dachzelt - Roof Top Tents ladder

9 - As standard, the automatic spring device blocks the ladder when it is open. The risk of slipping is prevented and the ladder is stable and safe on any terrain. Top of range versions, further equipped and with more optional than the classic version.

10 - 11 - 12 - Entry and exit is made using either of the 2 doors* with vertical zip fasteners. A second, additional, arc zip fastener is also fitted for partial door opening giving privacy and ventilation which can help eliminate condensation.
superiori delle porte, diventano anche efficaci prese d’aria anticondensa.

13 - Closing, the elastic guys can be activated by simple clips to fold the fabric inside the shell. The elastic is fitted neatly, not sewn onto the fabric, and does not cause crumpling, creasing or damage, ensuring perfect waterproofing and a good-looking tent. This feature is particularly useful with high vehicles.

14 - Ladder storage bag.

15 - Nécessaires storage: a new solution applied to the inner ceiling, equipped with closeable pockets.

Autohome Dachzelt - Maggiolina Roof Top Tents
Autohome Dachzelt - Maggiolina Roof Top Tents
Autohome Dachzelt - Maggiolina Roof Top Tents

16 - The series with all the top of range equipment is characterized by the possibility of additional load on the shells.

17 - 18 - 19 - The special supplied bars are removable and adjustable according to the loads being carried. All large items (camping tables, chairs etc) can be perfectly stored on the roof whilst bed linen etc can be stored safely inside the outer shells. On request, various and specific kit fix sets can be fastened to the “C” shaped channels integrated in the shell.

FABRIC ASSESSMENT CRITERIA

The optimality of any fabric cannot be assessed only by looking at its impermeability and watertightness, it is indeed essential to consider also its perspiration: every square centimeter of a fabric has to contribute to the natural air exchange cycle, in order to deliver such a real level of comfort that only the high perspiration of the fabric and the fast transmission of water vapor are able to guarantee.

Dralon Textile

THE TRUTH ABOUT BREATHABILITY

Breathability: 50.8 mm/s
Pick any portion of the fabric and hold it to your mouth. Blow hard. If you can feel the air on the palm of your hand, it means the fabric is breathable. With a breathable fabric you never feel the lack of air and can
breathe easily even when it is a hot night. And there are no draughts because you don’t need to leave the windows open to get rid of the moisture in the air.

HIGH TECH TEXTILES

Condensation is a natural phenomenon in a campsite tent. When the outside temperature falls below the temperature inside the tent, the moisture in the air condenses on the inside walls of the tent in the form of water droplets. This usually happens in the evening, at night or at high altitude when the fabric is coldest.
On the basis of many years of experience with the best materials, Autohome has chosen high-quality Airtex® for its new Airlander Plus 360° X-Large, Grand Tour 360° and Airtop 360° models. Airtex® is extremely versatile, is waterproof and strong, and transmits water vapour rapidly, removing it from inside the tent. So condensation is no longer a problem.

THE TRANSMISSION OF WATER VAPOUR

Transmission speed: 440g/mq/24hrs
Airtex® is a fabric that does not trap water vapour inside the tent but removes it naturally. This is the great difference with plasticized polyester, which is airtight and therefore creates moisture and condensation.

FABRIC ASSESSMENT CRITERIA

The optimality of any fabric cannot be assessed only by looking at its impermeability and watertightness, it is indeed essential to consider also its perspiration: every square centimeter of a fabric has to contribute to the natural air exchange cycle, in order to deliver such a real level of comfort that only the high perspiration of the fabric and the fast transmission of water vapor are able to guarantee.

Dralon Textile

THE TRUTH ABOUT BREATHABILITY

Breathability: 50.8 mm/s
Pick any portion of the fabric and hold it to your mouth. Blow hard. If you can feel the air on the palm of your hand, it means the fabric is breathable. With a breathable fabric you never feel the lack of air and can
breathe easily even when it is a hot night. And there are no draughts because you don’t need to leave the windows open to get rid of the moisture in the air.

HIGH TECH TEXTILES

Condensation is a natural phenomenon in a campsite tent. When the outside temperature falls below the temperature inside the tent, the moisture in the air condenses on the inside walls of the tent in the form of water droplets. This usually happens in the evening, at night or at high altitude when the fabric is coldest.
On the basis of many years of experience with the best materials, Autohome has chosen high-quality Airtex® for its new Airlander Plus 360° X-Large, Grand Tour 360° and Airtop 360° models. Airtex® is extremely versatile, is waterproof and strong, and transmits water vapour rapidly, removing it from inside the tent. So condensation is no longer a problem.

THE TRANSMISSION OF WATER VAPOUR

Transmission speed: 440g/mq/24hrs
Airtex® is a fabric that does not trap water vapour inside the tent but removes it naturally. This is the great difference with plasticized polyester, which is airtight and therefore creates moisture and condensation.

THE ADVANTAGES OF DRALON:

Autohome Dachzelt - Roof Top Tent material
Breathable: Dralon does not retain heat or humidity that form condensation, making it particularly resistant to mildew.
Autohome Dachzelt - Roof Top Tent material
Waterproof: Waterproofing treatment is unecessary because the fibres shed, not retain water, allowing you to fold the tents even when wet.
Autohome Dachzelt - Roof Top Tent material
Stability: Dralon fibres are pre-dyed before the fabric is woven, making it fade resistant, even under burning desert sun.
Autohome Dachzelt - Roof Top Tent material
Strength: Strong weft fibres help create a tear and crease resistant fabric, that will not shrink or expand even in extreme temperature fluctuations.
Autohome Dachzelt - Roof Top Tent material
Temperature: The fabric is guaranteed for use in extremes of temperature, ranging from -30° C up to 70°C.
Autohome Dachzelt - Roof Top Tent material
Maintenance: Construction of Dralons’ special/unique fabrics ensures a long maintenance free life.
Autohome Dachzelt - Roof Top Tent material
Fabrics ensure the tents are more soundproof and less transparent agaist light than traditional materials, yet still feel soft to the touch.
Autohome Dachzelt - Roof Top Tent material
Easy to maintain: No need of particular treatments.
Gray
Gray
Carbon
Carbon

ARTISAN QUALITY IN MASSPRODUCTION

Handmade

As for most of the versions of Autohome roof tents, the shells are made of fiberglass. Fiberglass is a particular fabric fiber interweaved and soaked in resinous liquid substances or polyester. This material is also known as GRP, glass reinforced plastic (GFK in German).
The above mentioned really expensive liquid resins, once adequately mixed with catalyzing or accelerating additives, are manually spread with hairy roller brushes on a glassy fabric previously lay on open stamps. In this way, while solidifying, the liquid resin incorporates the glassy fibers and creates the fiberglass. It is a laborious process by hand but it is surely worthy the quality of the result.
Fiberglass is very widespread within the building industry and used especially for roofs and other industrial and urban coverings. It does not get warm under the sun and keeps any closed environment insulated from heat and cold, an indispensable feature for any roof tent. Thanks to fiberglass, Autohome’s shells guarantee excellent quality not only in regard to their endurance and sound proof insulation, but also in terms of lightness and easiness to repair (avoiding this way the high costs of substitution of entire shells) This is one of the secrets that give Autohome roof tents superior quality and reliability. Wherever. Whenever. The quality of fiberglass is so great that this material is also used in the manufacturing of boats and cars, especially for bodyworks and hulls that need rigidity and stability throughout time… the best campers, for example, are the ones with single body made with fiberglass and therefore easily repairable (bodies made with ABS are indeed not very diffused anymore because of their difficult reparation processes). Thanks to its excellent qualities of lightness, robustness and resistance to decompression, fiberglass is also used for windmill blades and within the aeronautical and aerospace industry.
Autohome’s shells are designed and manufactured with the best existent material today.
No presumption of travelling to the moon (for the time being…).

ATTENTION!
NO PLASTIC
NO ABS
NO ACRILIC
100% FIBERGLASS
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials
How's done - Autohome Roof Top Tents
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials
Autohome Dachzelt - Roof Top Tents materials

FIBREGLASS ADVANTAGES

MATERIAL COMPARISON TABLE

SPECIFIC
WEIGHT
g/cm³
TENSILE
STRENGTH
MPa
ELASTIC
MODULUS
GPa
COEF.
OF THERMAL
EXPANSION K¯1
COEF.
OF THERMAL
CONDUCTIVITY W/mK
FIBREGLASS 1,5 400 26 11 x 10¯6 0,35
WOOD 0,7 250 12 14 x 10¯6 0,1
ALUMINIUM 2,7 80 70 23 x 10¯6 170
STEEL 7,8 400 210 12 x 10¯6 40
PLASTIC 1,8 70 3 85 x 10¯6 0,1

BEDROOMS MADE TO LAST

All particulars, from the design concept, materials and components, to the safety features and insulation, have been methodically chosen and thoroughly tested in order to obtain an all-weather proof product that can be depended upon at all times. Just like the structure of a boat, we have used fibreglass to prevent it from aging, discolouring or losing its shape. Its remarkable capacity to withstand knocks and bumps can ensure durability but should the worst happen Maggiolina is easily repaired.

BEDROOMS MADE TO LAST

All particulars, from the design concept, materials and components, to the safety features and insulation, have been methodically chosen and thoroughly tested in order to obtain an all-weather proof product that can be depended upon at all times. Just like the structure of a boat, we have used fibreglass to prevent it from aging, discolouring or losing its shape. Its remarkable capacity to withstand knocks and bumps can ensure durability but should the worst happen Maggiolina is easily repaired.

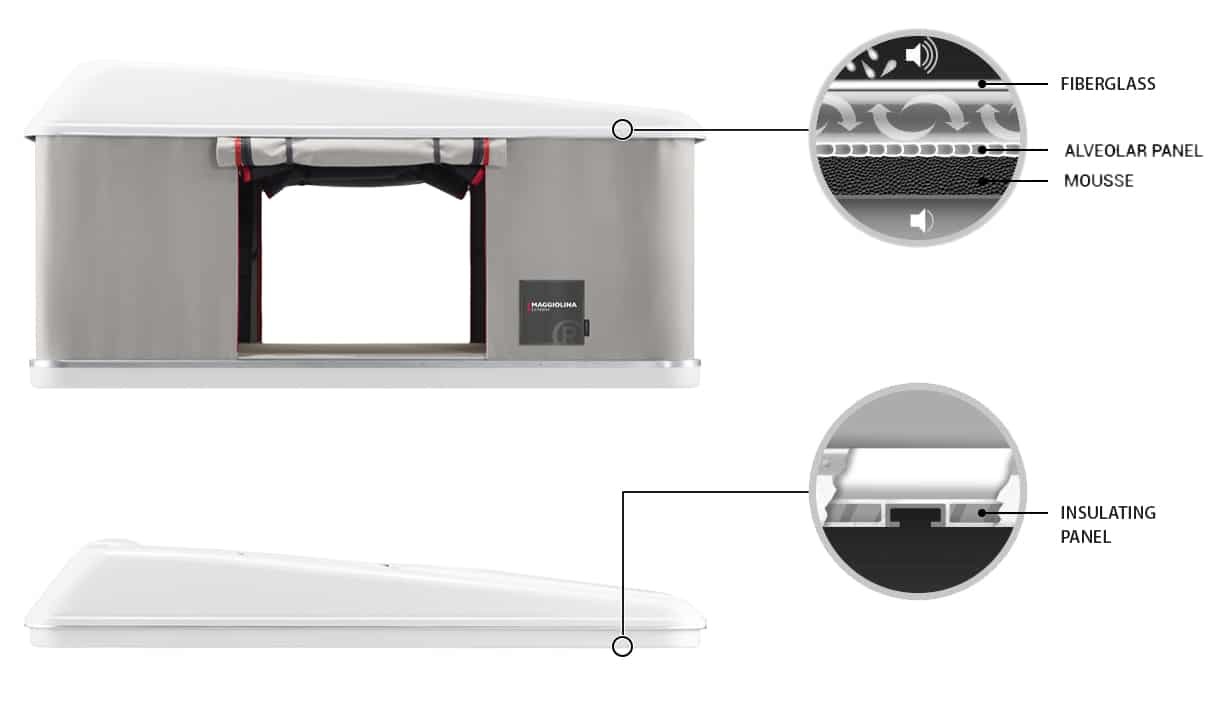

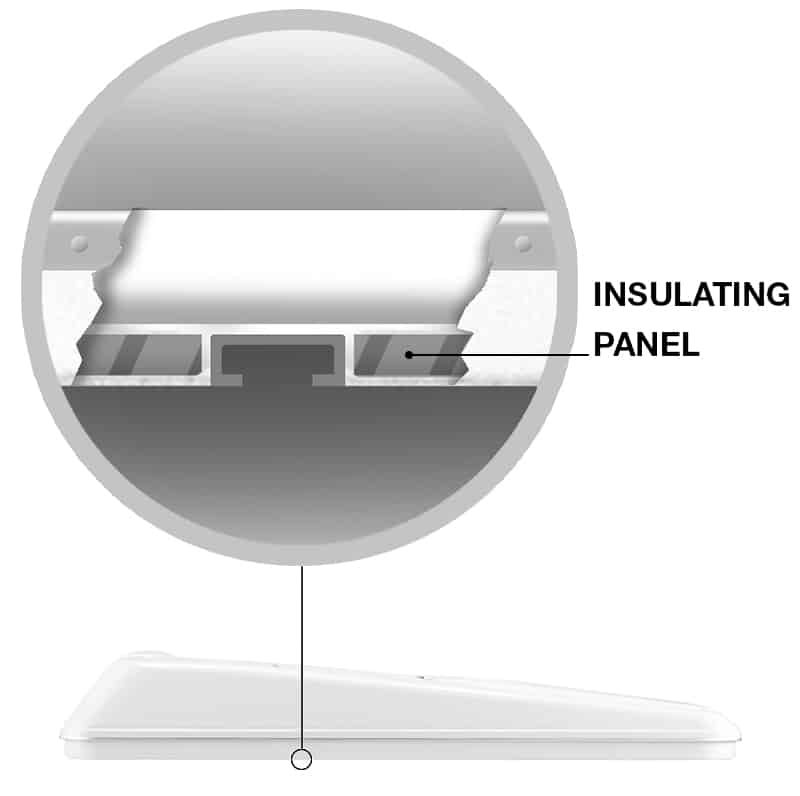

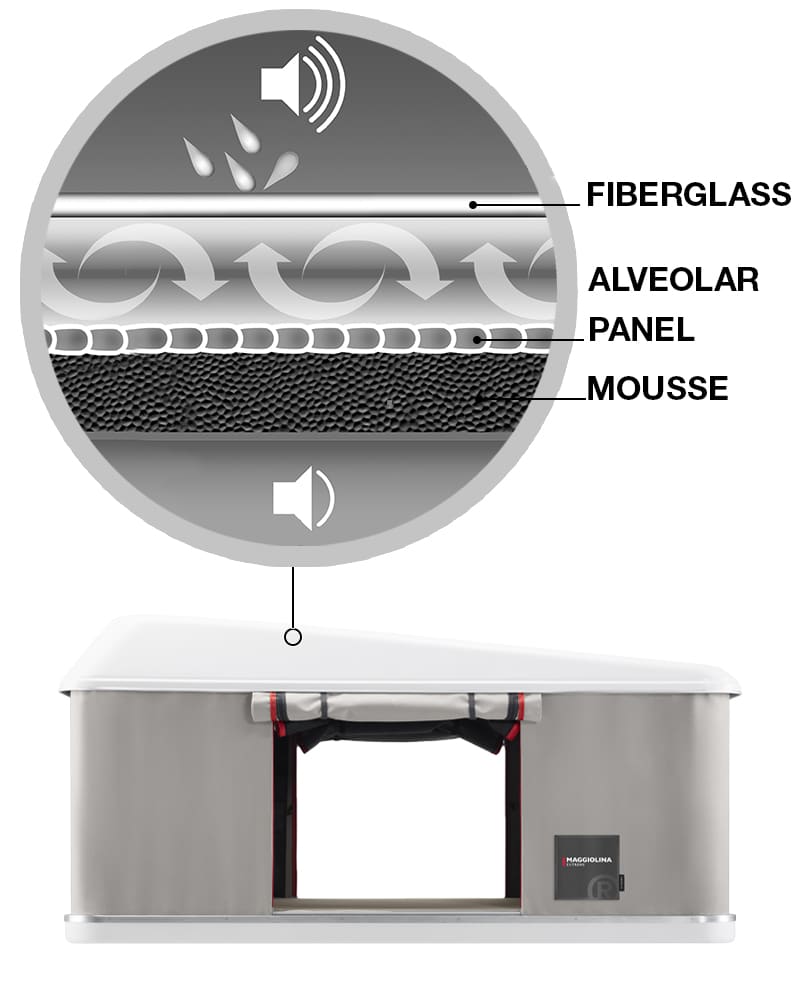

ROOF INSULATION

Roof insulation with air gap is an exclusive Autohome feature.
The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.

The “sandwich” construction base has 25mm insulation thickness, while the two “C” shaped built in guides allow easy installation of roof tent with any kind of roof cross bars (normally without any additional fixings) offering a steady and safe structure in order to withstand any off-road stresses.

Maggiolina mosquito net - Autohome Roof Top Tents

OUTSIDE YOU CAN’T SEE INSIDE, INSIDE YOU CAN SEE OUTSIDE
Dim. 0,5 x 0,7 mm [13,6×11/cm]
The mosquito net has an extraordinary blackout feature that provides more privacy to the occupants of the tent. Outside you can’t see inside, inside you can see outside.
The mosquito net is very thick.
It is incomparable to the standard and it features an innovative weave so fine that it does not allow the passage of any kind of insects. Quiet nights in marshy areas, near watercourses, on the banks of rivers or in areas where the presence of microscopic mosquitoes is very high.

Roof insulation with air gap is an exclusive Autohome feature.
The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.

The “sandwich” construction base has 25mm insulation thickness, while the two “C” shaped built in guides allow easy installation of roof tent with any kind of roof cross bars (normally without any additional fixings) offering a steady and safe structure in order to withstand any off-road stresses.

The mosquito net used is in fibreglass, soft and very resistant. It has a fine weft: 18x20 threads per square inch. The hole size is very small: peaceful nights everywhere, whether in swampy areas, by river banks or in the presence of very small insects.

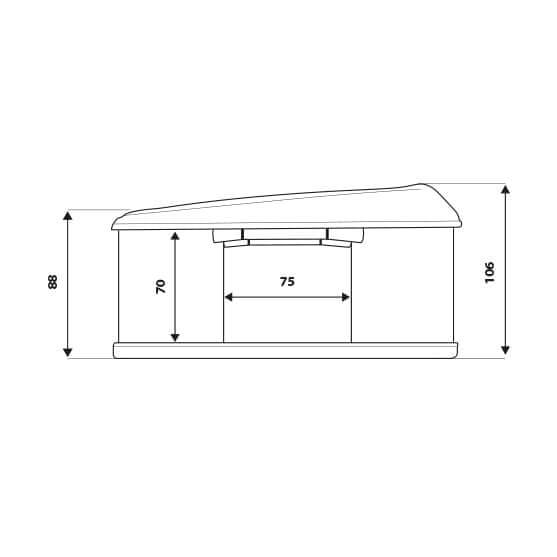

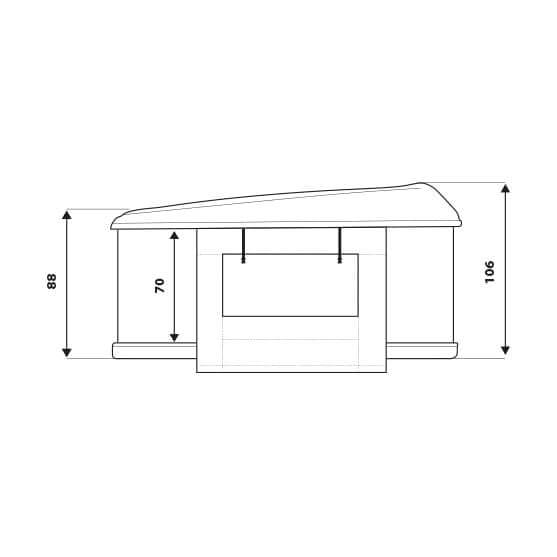

MAGGIOLINA EXTREME TECHNICAL DESINGS

NEW! 2024 FROM AUGUST 23

A.
Maggiolina Measures Details - Autohome Roof Top Tents
B.
Maggiolina Measures Details - Autohome Roof Top Tents
C.
Extreme Measures Details - Autohome Roof Top Tents
D.
E.
F.
G.
H.
Extreme Measures Details - Autohome Roof Top Tents
A.

V= with the tent closed, this indicates the capacity (volume) of the upper shell, in litres.
The upper shell contains 2 or 3 pillows, according to the model, and other night-time accessories or personal effects.
For example, a rucksack, blankets, a beauty-case, or the ladder, the changing room, winter hood or other travel accessories can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.

B.

When choosing a roof tent, the shell height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The overall length of 210 cm provides optimum comfort and room for rucksacks or large blankets.
Note: the dimensions indicated refer to the size of the shells.
Consider that, the shells being made with handcraft techniques in different moulds and configurations (Maggiolina / Columbus / Airtop), their length and width can vary +/- 30 mm.

C.

The width (SMALL /MEDIUM) is according to the number of occupants

D.

The width of the door L= 90 cm is designed for easy access even if you are not as slim and nimble as you used to be (most doors at home are about 75 cm wide).

E.

The doors have arch-shaped zips for partial opening, providing privacy and improved air circulation inside the tent. When required, the areas above the doors become anti-condensation air sockets.

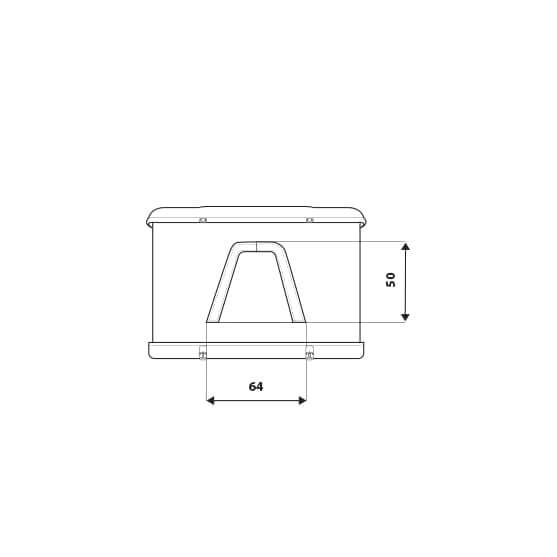

F.

The windows are big enough to give an excellent view and small enough not to compromise privacy.

G.

With the special “C” shaped guides built into the top, you can fit specific roof racks to hold items such as canoes or surfboards without any additional attachments. Max 25 kg.

H.

Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied.

STANDARD HANDLE
Autohome Dachzelt - Maggiolina Roof Top Tents crank
HANDLE EXTENSION (A richiesta, specificare al momento dell’ordine)
Autohome Dachzelt - Roof Top Tents crank

DESIGN MADE IN ITALY

Design Made in Italy means quality, originality and style.
A production process of every single roof top tent is based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition.
The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.

DESIGN MADE IN ITALY

Design Made in Italy means quality, originality and style.
A production process of every single roof top tent is based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition.
The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.

MAGGIOLINA ACCESSORIES

A COMPLETE RANGE OF MATCHING ACCESSORIES
FOR A COMFORTABLE STAY

The self-contained veranda can be set up easily and quickly, and is recommended for long stays or holidays in one location. Matches Maggiolina creating a large protected space for cooking, dining, additional sleeping room and all holiday accessories.
An extremely popular, independent structure allowing you to drive away leaving your equipment well protected.The equipment can be left in the campsite, closed and sheltered even when the vehicle is being used for a quick visit, shopping or to suss out a place to visit.

veranda-magg-web-bis-800x800

INDIPENDENT VERANDAH

FOR CARS Art. M/05A - cm 200 x 160 x h 240

FOR 4x4 Art. M/06A - cm 200 x 160 x h 260

AL The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

INDIPENDENT VERANDAH
(FOR CARS)

Art. M/05A - cm 200 x 160 x h 240

INDIPENDENT VERANDAH
(FOR 4x4)

Art. M/06A - cm 200 x 160 x h 260

AL The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

MORE PRIVACY WITH THE CHANGING ROOM

An additional space protected and closed on all four sides. The adjustable pared-down aluminium poles hook onto the Maggiolina quickly and without fuss. The entrance is a zipped arch opening both sides, with side ladder for easy access to the Maggiolina covering the vehicle windows. On the side opposite the entrance the cabin is fitted with a large window with mosquito net. Various heights are available according to the vehicle make and height. The standard measurements are: for cars and Sw 140 x 170 cm, for 4WDs, SUVs and vans.

CHANGING ROOM

Art. M/12 A for cars (h 155 /170 cm)

Art. M/13A-1 per Monovolume (h 171/ 185 cm)
Art. M/13A-2 fot 2 SUV - 4x4 (h 186/200 cm)
Art. M/13A-3 for 4x4 High - Vagon (h2001/220 cm)

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

CHANGING ROOM

Art. M/12 A for cars (h 155 /170 cm)

Art. M/13A-1 per Monovolume (h 171/ 185 cm)
Art. M/13A-2 fot 2 SUV - 4x4 (h 186/200 cm)
Art. M/13A-3 for 4x4 High - Vagon (h2001/220 cm)

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

FEET

Art. M/09A

Four strong feet allows you to place Maggiolina on the floor if desired. Measuring 25 cm high a safe distance from floor humidity, water, insects, stones etc.
Foldable and clutter free they can be installed in any desired position. Useful in camping sites or residential areas which prohibit the entry of vehicles during the night.

FEET

Art. M/09A

Four strong feet allows you to place Maggiolina on the floor if desired. Measuring 25 cm high a safe distance from floor humidity, water, insects, stones etc.
Foldable and clutter free they can be installed in any desired position. Useful in camping sites or residential areas which prohibit the entry of vehicles during the night.

AWNING

For cars Art.M/11A-1

For 4x4 Art. M/11A-2

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

AWNING

(for cars) Art.M/11A-1

AWNING 4X4(for vans and 4 wheel drivers) Art. M/11A-2

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

Easy and quick to set up, it creates a shaded area for cooking, dining and relaxing, or – most importantly - as a shelter from the rain.

Roof size: 200x160 cm.

WINTER HOOD

Art. M/10A

Made of resin bonded nylon fibre and aluminium powder. Excellent protection from the burning effect of the suns rays, and equally useful for extra insulation in colder conditions.
Quickly attached, by Velcro strips, and removed, it can also provide additional protection in the most extreme of conditions. Can be left in situ when closing the tent.

WINTER HOOD

Art. M/10A

Made of resin bonded nylon fibre and aluminium powder. Excellent protection from the burning effect of the suns rays, and equally useful for extra insulation in colder conditions.
Quickly attached, by Velcro strips, and removed, it can also provide additional protection in the most extreme of conditions. Can be left in situ when closing the tent.

WINGS

Art. M/W01C Art. M/W01G

Entrance protection for additional shelter in case of rain. Simple, easy to use and much appreciated by customers.

The framework is constructed from round anodised aluminium poles. Textile: AIRTEX®

WINGS

Art. M/W01C

Art. M/W01G

Entrance protection for additional shelter in case of rain. Simple, easy to use and much appreciated by customers. Made of Airtex fabric with windproof structure, aluminium and steel, space saving.

The framework is constructed from round anodised aluminium poles. Textile: AIRTEX®

ROLLING TOP - SHELL

Art. R/TOP - S cm 180x180
Art. R/TOP - M cm 220x225

Awning with built in supporting legs that's easily installed to roof racks. Designed and made by Fiamma® for Autohome, it is practical and always ready to use.

The framework is constructed from round anodised aluminium poles

ROLLING TOP - SHELL

Art. R/TOP - S cm 180x180
Art. R/TOP - M cm 220x225

Awning with built in supporting legs that's easily installed to roof racks. Designed and made by Fiamma® for Autohome, it is practical and always ready to use.

The framework is constructed from round anodised aluminium poles

ROLLING TOP – SOFT

Art. R/TOPS – S cm 200x250

Awning with load-bearing structure in anodized aluminum with PVC cover, easily installed on any roof rack. An Autohome® product, practical and always ready: it ensures a relaxation area and an additional shelter. Also suitable for travel and safari.

The framework is constructed from round anodised aluminium poles.

ROLLING TOP – SOFT

Art. R/TOPS – S cm 200x250

Awning with load-bearing structure in anodized aluminum with PVC cover, easily installed on any roof rack. An Autohome® product, practical and always ready: it ensures a relaxation area and an additional shelter. Also suitable for travel and safari.

The framework is constructed from round anodised aluminium poles.
Z1_en-3D_N

UNIVERSAL SYSTEM

Z1_en-3D_N

UNIVERSAL SYSTEM

The exclusive Autohome security system allows all tents to be used on any vehicle: small cars, off-road vehicles, station-wagons, MPV’s (or people carriers), camper vans, and pick-up trucks... A universal, quick attachment system, allows you to position the tent safely in any position, with no risk of damage or modifications to the body of the vehicle. Various fixing kits are available to suit.

Video Universal System Tech-TV
Autohome Dachzelt - Roof Top Tents how to

1st Advantage:

All tents are fully independent for easy installation on the car roof.

Autohome Dachzelt - Roof Top Tents how to

2nd Advantage:

The C-shaped steel rails integrated into the bases of all Autohome models strengthen the structure and make it possible to fix the tent to the roof bars by means of special clamps.

Autohome Dachzelt - Roof Top Tents how to

3rd Advantage:

Just two people (standing beside the car) can easily lift the tent and position it on the roof bars without risk to the bodywork.

Autohome Dachzelt - Roof Top Tents how to

4th Advantage:

The standard clamps slide along the C-shaped rails to fix the tent in the desired position. This position varies depending on the type of car, to be used as a carryall or for best appearance.

Autohome Dachzelt - Roof Top Tents don't use

The tent bases must not be drilled for fixing onto the roof bars.

Autohome Dachzelt -

No holes are to be drilled in the roof bars to secure the tent. This operation is prohibited by current safety regulations. It is not permitted to make changes to the roof rack.

Autohome Dachzelt - Roof Top Tents warnings

4 clamps are provided as standard for simple, easy mounting according to the rules.

Autohome Dachzelt - Roof Top Tents warnings

Universal System Autohome is a mounting system according to the standards, certified by T.V - ID: 0000024461. Beware of imitations.

Autohome Dachzelt - Roof Top Tents warnings

An example of a roof rack for motor cars without water channels.

Autohome Dachzelt - Roof Top Tents warnings

Connection for off-road vehicles or motor cars with water channels.

Autohome Dachzelt - Roof Top Tents warnings

Attachment bars for motor cars with fitted rails.

Autohome Dachzelt - Roof Top Tents warnings

Special Order: Roof Bars or Expedition Roof Racks available in Steel or Aluminium.

CLAMPS SIZE AVAILABLE

AUTOHOME
DRIVE CALM AND SLEEP PEACEFULLY

Safety is priceless for us at Autohome and for this reason our research and development centre has always worked on two fronts: first to guarantee "no problem journeys" and second to ensure "peaceful nights".

NO PROBLEM JOURNEYS

The roof tent is a load subject to dynamic stress when driving on the road and like any other load outside the vehicle must be firmly anchored and give a guarantee of safety, in order not to become a hazard. Autohome roof tents are made
of the best materials to be solid and robust, able to withstand the stresses of the asphalt and the aerodynamic drag of the wind. They passed the stringent certification tests of the product and materials to travel years and years without problems.

AUTOHOME QUALITY TENTS CERTIFIED ALSO BY TÜV



PEACEFUL NIGHTS

The same attention we paid to dynamic security was also given to the quality of sleep. First choice materials, accurate finishes, attention to details mean that in the Autohome tent you sleep in a real bed, insulated from the heat and cold and soundproofed from rain noise.

WARNING

There are roof tents on the market that do not have any real product certification. Beware of certifications such as ISO 9001 that some sellers advertise, because they concern the company organization and are not at all a guarantee of quality and security of the tent you are going to buy.
On the contrary, Autohome roof tents have passed stringent quality tests of the materials used, carried out in the laboratories of qualified Bodies, including the German TÜV.

AUTOHOME
DRIVE CALM AND SLEEP PEACEFULLY

Safety is priceless for us at Autohome and for this reason our research and development centre has always worked on two fronts: first to guarantee "no problem journeys" and second to ensure "peaceful nights".

NO PROBLEM JOURNEYS

The roof tent is a load subject to dynamic stress when driving on the road and like any other load outside the vehicle must be firmly anchored and give a guarantee of safety, in order not to become a hazard. Autohome roof tents are made
of the best materials to be solid and robust, able to withstand the stresses of the asphalt and the aerodynamic drag of the wind. They passed the stringent certification tests of the product and materials to travel years and years without problems.

AUTOHOME QUALITY TENTS CERTIFIED ALSO BY TÜV



PEACEFUL NIGHTS

The same attention we paid to dynamic security was also given to the quality of sleep. First choice materials, accurate finishes, attention to details mean that in the Autohome tent you sleep in a real bed, insulated from the heat and cold and soundproofed from rain noise.

WARNING

There are roof tents on the market that do not have any real product certification. Beware of certifications such as ISO 9001 that some sellers advertise, because they concern the company organization and are not at all a guarantee of quality and security of the tent you are going to buy.
On the contrary, Autohome roof tents have passed stringent quality tests of the materials used, carried out in the laboratories of qualified Bodies, including the German TÜV.

VIEW 360°

Look "from every point of view" at the original Autohome product you want to learn more about. Make the design - born from great aesthetic sensitivity and care even in the smallest details - rotate before your eyes. Observe how the style translates into reliability and durability and discover the reasons that continue to make Autohome "the excellence" in its sector.

COLOUR OF FABRICS

Gray
Carbon

SHELL COLOURS

White
