AIRTOP ®

THE ORIGINAL BY AUTOHOME®

THE CROSSOVER ROOF TENT

Design, hard fiberglass shell and gas-powered opening system in a single roof top tent

A new shell for a new opening technique: from the union of Maggiolina design and the gas-powered opening system of Columbus comes AirTop, the first roof tent that combines a large living environment and unrivalled speedy opening. Available in safari colour or darker shades of carbon, with white or black shells, these roof tents revolutionize the thinking about how to set up a tent.

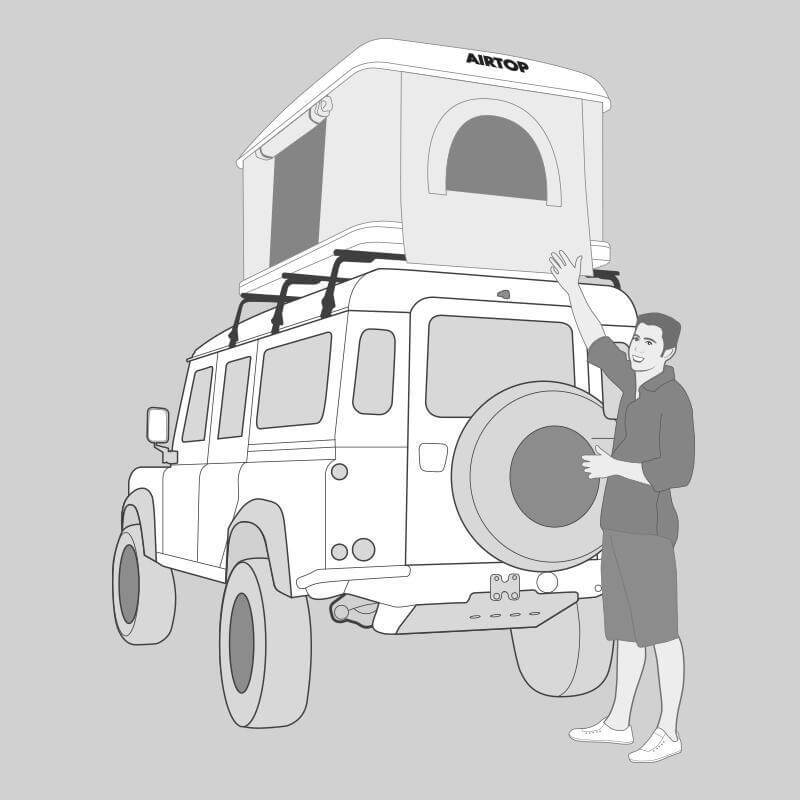

To close the tent, just lower the hooks and secure them to the base of the tent, with the adjustable Rally-Race.
The AirTop roof tent makes extreme adventure exceptionally comfortable.
Autohome: “ A simple silhouette and a great look "

COLOUR OF FABRICS

Safari
Carbon

SHELL COLOURS

White
Black storm

FIBERGLASS 100% "GLASS RENFORCED PLASTIC" - GFK IN GERMAN

Shells are handmade by precision craftsmen, the best guarantee of quality: a quality structure, compact, pull-out, unlike ordinary plastic or similar products available on the market. The fiberglass insulates the inside from the heat and cold and can be cleaned easily (it is undamaged by aggressive cleaning agents). Strength, reliability, comfort, quality: Maggiolina roof tents are all this and more.

EXCLUSIVE SERIES AIRTOP BLACK STORM

Black Storm model has the same internal features as the standard AirTop but comes with a combination of Carbon Colour Fabric and Black Colour Impregnated GRP shell.

THE COMPLETE RANGE
AIRTOP

small SMALL
Recommended
for 2 adults
Art: ATC/01 – ATS/01 – ATBS/01
AirTop Small
Sizes: 130 x 210 cm
Closed h: 33 cm
Open h: 94 cm
Weight: about 60 Kg*
Volume: about 271 l*
small MEDIUM
Recommended
for 2 adults + 1 child.
Art: ATC/02 – ATS/02 – ATBS/02
AirTop Medium
Sizes: 145 x 210 cm
Closed h: 33 cm
Open h: 94 cm
Weight: about 65 Kg*
Volume: about 305 l*
LARGE
Recommended
for 2 adults + 2 childs.
Art: ATC/03 – ATS/03 – ATBS/03
AirTop Large
Sizes: 160 x 215 cm
Closed h: 33 cm
Open h: 94 cm
Weight: about 77 Kg*
Volume: about 340 l*
THE COMPLETE RANGE
AIRTOP

Open H max 94 cm
small SMALL
Recommended
for 2 adults
Art: ATC/01 – ATS/01 – ATBS/01
AirTop Small
Sizes: 130 x 210 cm
Closed h: 33 cm
Open h: 94 cm
Weight: about 60 Kg*
Volume: about 271 l*
small MEDIUM
Recommended
for 2 adults + 1 child.
Art: ATC/02 – ATS/02 – ATBS/02
AirTop Medium
Sizes: 145 x 210 cm
Closed h: 33 cm
Open h: 94 cm
Weight: about 65 Kg*
Volume: about 305 l*
LARGE
Recommended
for 2 adults + 2 childs.
Art: ATC/03 – ATS/03 – ATBS/03
AirTop Large
Sizes: 160 x 215 cm
Closed h: 33 cm
Open h: 94 cm
Weight: about 77 Kg*
Volume: about 340 l*
THE COMPLETE RANGE
AIRTOP

Open H max 94 cm

COMFORT WITHOUT COMPROMISE

A new shell very capacious and glamorous that can be quickly opened thanks to 4 gas springs. The lifting of the shell takes place in two times, changing the action position. Equipment: top of range.

AUTOMATIC, QUICK AND INSTANTANEOUS OPENING SYSTEM.

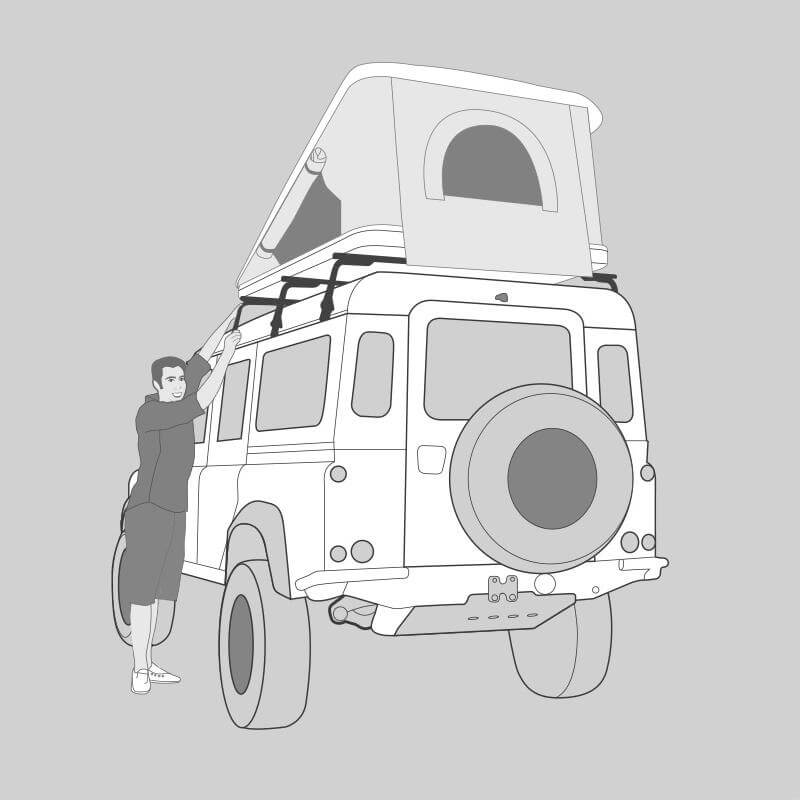

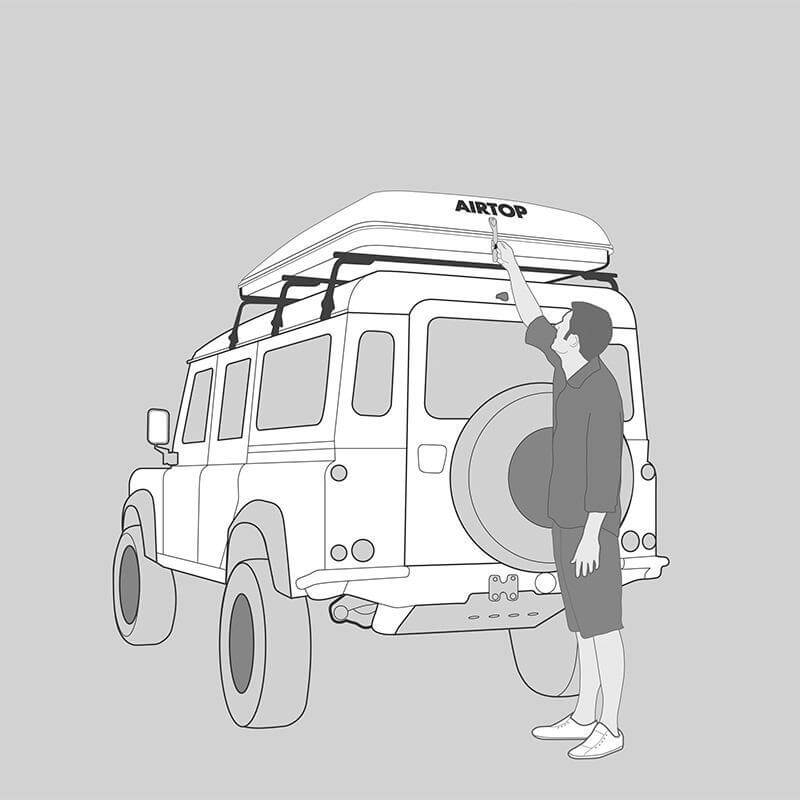

Once the latches have been unlocked (1 on the back and 2 on the front), AirTop opens by means of 4 gas-struts.

Video AirTop Tech-TV

1 - As standard: 4 gas springs. The lifting of the shell takes place in two times.

2 - 3 - Standard Equipment includes: 3 doors (1 each side and 1 on the rear of the tent) and 2 arched windows with mosquito netting for ventilation and reduction of condensation.

4 - As standard: internal elastics straps to help folding of the fabric when closing the tent.

5 - Closing: simple, adjustable Rally-Race style locking straps.

6 - The aerodynamic design coupled with its ample storage capacity will allow you to safeguard all your overnight items, camping/ travel accessories, sporting equipment and valuables from all weather conditions.

7 - As standars: overhead Osram® quality light (18x5 cm), with 3 super bright Leds, with pivotable reflector and easy to replace batteries. Roof is equipped with anticondensation insulation.

8 - The aluminium ladder has very small overall dimensions. The antiskid unit is normally supplied with the tent.

9 - As standard, the automatic spring device blocks the ladder when it is open. The risk of slipping is prevented and the ladder is stable and safe on any terrain.
Top of range versions, further equipped and with more optional than the classic version.

10 - 11 - 12 - Entry and exit is made using either of the 2 doors* with vertical zip fasteners. A second, additional, arc zip fastener is also fitted for partial door opening giving privacy and ventilation which can help eliminate condensation.

13 - Closing, the elastic guys can be activated by simple clips to fold the fabric inside the shell. The elastic is fitted neatly, not sewn onto the fabric, and does not cause crumpling, creasing or damage, ensuring perfect waterproofing and a good-looking tent. This feature is particularly useful with high vehicles.

14 - Ladder storage bag.

15 - Stowage nets, useful for sleeping bags, towels and personal belongings.

16 - Four removable pockets, two each side, fitted as standard.

HIGH QUALITY TEXTILES

You can’t control the weather. But in a violent storm, in high winds or blistering temperatures, Autohome has the right answer for comfortable tent life. The AIRLANDER, AIRLANDER PLUS, GRAND TOUR, EXTREME and AIRTOP models have always used prestige Dralon® (a Bayer textile). Unlike plasticized, coated or simply cotton fabrics, Dralon® is waterproof, strong and, above all, breathable. Every square centimeter of Dralon® helps to renew the air naturally, for genuine wellbeing and comfort inside the tent. The particular design of the fabric ensures insulation against both the heat and cold, and keeps off glare and excessive sunlight.

THE TRUTH ABOUT BREATHABILITY

Breathability: 50.8 mm/s
Pick any portion of the fabric and hold it to your mouth. Blow hard. If you can feel the air on the palm of your hand, it means the fabric is breathable. With a breathable fabric you never feel the lack of air and can
breathe easily even when it is a hot night. And there are no draughts because you don’t need to leave the windows open to get rid of the moisture in the air.

HIGH TECH TEXTILES

Condensation is a natural phenomenon in a campsite tent. When the outside temperature falls below the temperature inside the tent, the moisture in the air condenses on the inside walls of the tent in the form of water droplets. This usually happens in the evening, at night or at high altitude when the fabric is coldest.
On the basis of many years of experience with the best materials, Autohome has chosen high-quality Airtex® for its new Airlander Plus 360° X-Large, Grand Tour 360° and Airtop 360° models. Airtex® is extremely versatile, is waterproof and strong, and transmits water vapour rapidly, removing it from inside the tent. So condensation is no longer a problem.

THE TRANSMISSION OF WATER VAPOUR

Transmission speed: 440g/mq/24hrs
Airtex® is a fabric that does not trap water vapour inside the tent but removes it naturally. This is the great difference with plasticized polyester, which is airtight and therefore creates moisture and condensation.

THE ADVANTAGES OF DRALON:

materiali icona 1
Breathable: Dralon does not retain heat or humidity that form condensation, making it particularly resistant to mildew.
materiali icona 2
Waterproof: Waterproofing treatment is unecessary because the fibres shed, not retain water, allowing you to fold the tents even when wet.
materiali icona 3
Stability: Dralon fibres are pre-dyed before the fabric is woven, making it fade resistant, even under burning desert sun.
materiali icona 4
Strength: Strong weft fibres help create a tear and crease resistant fabric, that will not shrink or expand even in extreme temperature fluctuations.
materiali icona 5
Temperature: The fabric is guaranteed for use in extremes of temperature, ranging from -30° C up to 70°C.
materiali icona 6
Maintenance: Construction of Dralons’ special/unique fabrics ensures a long maintenance free life.
materiali icona 7
Fabrics ensure the tents are more soundproof and less transparent agaist light than traditional materials, yet still feel soft to the touch.
materiali icona 8
Easy to maintain: No need of particular treatments.

UNI EN ISO 9237/97 test/method ratio
PERMEABILITY TO THE AIR (R) – average 23.1 mm/s

blue
blue
Gray
Gray
Carbon
Carbon
Forest
Forest
Safari
Safari

ARTISAN QUALITY IN MASSPRODUCTION

As for most of the versions of Autohome roof tents, the shells are made of fiberglass.
Fiberglass is a particular fabric fiber interweaved and soaked in resinous liquid substances or polyester. This material is also known as GRP, glass reinforced plastic (GFK in German).
The above mentioned really expensive liquid resins, once adequately mixed with catalyzing or accelerating additives, are manually spread with hairy roller brushes on a glassy fabric previously lay on open stamps. In this way, while solidifying, the liquid resin incorporates the glassy fibers and creates the fiberglass. It is a laborious process by hand but it is surely worthy the quality of the result.
Fiberglass is very widespread within the building industry and used especially for roofs and other industrial and urban coverings. It does not get warm under the sun and keeps any closed environment insulated from heat and cold, an indispensable feature for any roof tent.
Thanks to fiberglass, Autohome’s shells guarantee excellent quality not only in regard to their endurance and sound proof insulation, but also in terms of lightness and easiness to repair (avoiding this way the high costs of substitution of entire shells, usual in the case of Asian manufacturing that commonly uses simple plastic.

The quality of fiberglass is so great that this material is also used in the manufacturing of boats and cars, especially for bodyworks and hulls that need rigidity and stability throughout time… the best campers, for example, are the ones with single body made with fiberglass and therefore easily repairable (bodies made with ABS are indeed not very diffused anymore because of their difficult reparation processes).
Thanks to its excellent qualities of lightness, robustness and resistance to decompression, fiberglass is also used for windmill blades and within the aeronautical and aerospace industry.
Autohome’s shells are designed and manufactured with the best existent material today.
No presumption of travelling to the moon (for the time being...).

ATTENTION!
NO PLASTIC
NO ABS
NO ACRILIC
100% FIBERGLASS

FIBREGLASS ADVANTAGES

MATERIAL COMPARISON TABLE

SPECIFIC
WEIGHT
g/cm³
TENSILE
STRENGHT
MPa
ELASTIC
MODULE
GPa
COEF.
OF THERMAL
EXPANSION K¯1
COEF.
OF THERMAL
CONDUCTIVITY W/mK
VETRORESINA 1,5 400 26 11 x 10¯6 0,35
LEGNO 0,7 250 12 14 x 10¯6 0,1
ALLUMINIO 2,7 80 70 23 x 10¯6 170
ACCIAIO 7,8 400 210 12 x 10¯6 40
PLASTICA 1,8 70 3 85 x 10¯6 0,1

BEDROOMS MADE TO LAST

All particulars, from the design concept, materials and components, to the safety features and insulation, have been methodically chosen and thoroughly tested in order to obtain an all-weather proof product that can be depended upon at all times.
Just like the structure of a boat, we have used fibreglass to prevent it from aging, discolouring or losing its shape. Its remarkable capacity to withstand knocks and bumps can ensure durability but should the worst happen Maggiolina is easily repaired.

ROOF INSULATION

Roof insulation with air gap is an exclusive Autohome feature. The air cushion obtained by the internal alveolar panel and the anti-condensation foam allow a better thermal and acoustic insulation and a healthier and more silent place to rest in case of rain.

The “sandwich” construction base has 25mm insulation thickness, while the two “C” shaped built in guides allow easy installation of roof tent with any kind of roof cross bars (normally without any additional fixings) offering a steady and safe structure in order to withstand any off-road stresses.

zoom

Dim. 1,12 x 0,96 mm
[18×20/square inch]

The mosquito net used is in fibreglass, soft and very resistant. It has a fine weft: 18×20 threads per square inch. The hole size is very small:
peaceful nights everywhere, whether in swampy areas, by river banks or in the presence of very small insects.

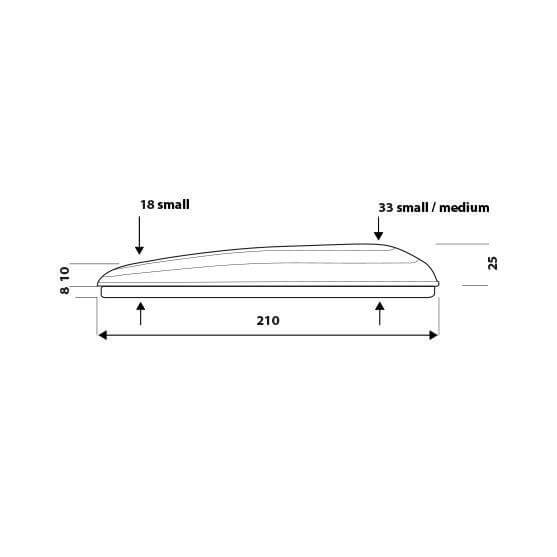

AIRTOP THECNICALS DESIGNS

A.
B.
C.
D.
E.
F.
G.
A.

V= with the tent closed, this indicates the capacity (volume) of the upper shell, in litres.
The upper shell contains 2,3 or 4 pillows, according to the model, and other night-time accessories or personal effects.
For example, a rucksack, blankets, a beauty-case, or the ladder, the changing room, winter hood or other travel accessories can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.

B.

When choosing a roof tent, the shell height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The overall length of 210 cm provides optimum comfort and room for rucksacks or large blankets.

C.

The width (SMALL /MEDIUM /LARGE) is according to the number of occupants

D.

The width of the door L= 75 cm is designed for easy access even if you are not as slim and nimble as you used to be (most doors at home are about 75 cm wide).

E.

The window is big enough to give an excellent view and small enough not to compromise privacy.

F.

The width of the back door L= 75 cm is designed for easy access from the back of the car.

G.

Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied.

DESIGN MADE IN ITALY

Design Made in Italy means quality, originality and style.
A production process based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability, making Autohome a leading and excellent participant in international competition.
The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.

A COMPLETE RANGE OF MATCHING ACCESSORIES FOR A COMFORTABLE STAY

The self-contained veranda can be set up easily and quickly, and is recommended for long stays or holidays in one location. Matches Maggiolina creating a large protected space for cooking, dining, additional sleeping room and all holiday accessories.
An extremely popular, independent structure allowing you to drive away leaving your equipment well protected.The equipment can be left in the campsite, closed and sheltered even when the vehicle is being used for a quick visit, shopping or to suss out a place to visit.

veranda_maggiolina_1_640x640
veranda_maggiolina_1_640x640

INDIPENDENT VERANDAH
(FOR CARS)

Art. M/05A - cm 200 x 160 x h 240

AL The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

INDIPENDENT VERANDAH
(FOR CARS)

Art. M/05A - cm 200 x 160 x h 240

AL The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.



MORE PRIVACY WITH THE CHANGING ROOM

An additional space protected and closed on all four sides. The adjustable pared-down aluminium poles hook onto the Maggiolina quickly and without fuss. The entrance is a zipped arch opening both sides, with side ladder for easy access to the Maggiolina covering the vehicle windows. On the side opposite the entrance the cabin is fitted with a large window with mosquito net. Various heights are available according to the vehicle make and height. The standard measurements are: for cars and Sw 140 x 170 cm, for 4WDs, SUVs and vans.

CHANGING ROOM

Art. M/12 A for cars (h 155 /170 cm)

Art. M/13A-1 per Monovolume (h 171/ 185 cm)
Art. M/13A-2 fot 2 SUV - 4x4 (h 186/200 cm)
Art. M/13A-3 for 4x4 High - Vagon (h2001/220 cm)

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

CHANGING ROOM

Art. M/12 A for cars (h 155 /170 cm)

Art. M/13A-1 per Monovolume (h 171/ 185 cm)
Art. M/13A-2 fot 2 SUV - 4x4 (h 186/200 cm)
Art. M/13A-3 for 4x4 High - Vagon (h2001/220 cm)

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

FEET

Art. M/09A

Four strong feet allows you to place Maggiolina on the floor if desired. Measuring 25 cm high a safe distance from floor humidity, water, insects, stones etc.
Foldable and clutter free they can be installed in any desired position. Useful in camping sites or residential areas which prohibit the entry of vehicles during the night.

FEET

Art. M/09A

Four strong feet allows you to place Maggiolina on the floor if desired. Measuring 25 cm high a safe distance from floor humidity, water, insects, stones etc.
Foldable and clutter free they can be installed in any desired position. Useful in camping sites or residential areas which prohibit the entry of vehicles during the night.

AWNING

(for cars) Art.M/11A-1

AWNING 4X4(for vans and 4 wheel drivers) Art. M/11A-2

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

Easy and quick to set up, it creates a shaded area for cooking, dining and relaxing, or – most importantly - as a shelter from the rain.

Roof size: 200x160 cm.

AWNING

(for cars) Art.M/11A-1

AWNING 4X4(for vans and 4 wheel drivers) Art. M/11A-2

The framework is constructed from round anodised aluminium poles- AIRTEX® tissue.

Easy and quick to set up, it creates a shaded area for cooking, dining and relaxing, or – most importantly - as a shelter from the rain.

Roof size: 200x160 cm.

WINTER HOOD

Art. M/10A

Made of resin bonded nylon fibre and aluminium powder. Excellent protection from the burning effect of the suns rays, and equally useful for extra insulation in colder conditions.
Quickly attached, by Velcro strips, and removed, it can also provide additional protection in the most extreme of conditions. Can be left in situ when closing the tent.

WINTER HOOD

Art. M/10A

Made of resin bonded nylon fibre and aluminium powder. Excellent protection from the burning effect of the suns rays, and equally useful for extra insulation in colder conditions.
Quickly attached, by Velcro strips, and removed, it can also provide additional protection in the most extreme of conditions. Can be left in situ when closing the tent.

WINGS

Art. M/W01C

Art. M/W01G

Entrance protection for additional shelter in case of rain. Simple, easy to use and much appreciated by customers. Made of Airtex fabric with windproof structure, aluminium and steel, space saving.

The framework is constructed from round anodised aluminium poles. Textile: AIRTEX®

WINGS

Art. M/W01C

Art. M/W01G

Entrance protection for additional shelter in case of rain. Simple, easy to use and much appreciated by customers. Made of Airtex fabric with windproof structure, aluminium and steel, space saving.

The framework is constructed from round anodised aluminium poles. Textile: AIRTEX®

AWNING ROLLING TOP

Art. R/TOP - S cm 180x180
Art. R/TOP - M cm 220x225

Perfectly in line with the well-known practicality of Maggiolina, Autohome has created an awning that is both strong and easy to fit. It can be folded away and stored in an anodized aluminium box to be fitted on any roof rack.

The framework is constructed from round anodised aluminium poles

AWNING ROLLING TOP

Art. R/TOP - S cm 180x180
Art. R/TOP - M cm 220x225

Perfectly in line with the well-known practicality of Maggiolina, Autohome has created an awning that is both strong and easy to fit. It can be folded away and stored in an anodized aluminium box to be fitted on any roof rack.

The framework is constructed from round anodised aluminium poles

UNIVERSAL SYSTEM

The exclusive Autohome security system allows all tents to be used on any vehicle: small cars, off-road vehicles, station-wagons, MPV’s (or people carriers), camper vans, and pick-up trucks... A universal, quick attachment system, allows you to position the tent safely in any position, with no risk of damage or modifications to the body of the vehicle. Various fixing kits are available to suit.

Video Universal System Tech-TV

1st Advantage:

All tents are fully independent for easy installation on the car roof.

2nd Advantage:

The C-shaped steel rails integrated into the bases of all Autohome models strengthen the structure and make it possible to fix the tent to the roof bars by means of special clamps.

3rd Advantage:

Just two people (standing beside the car) can easily lift the tent and position it on the roof bars without risk to the bodywork.

4th Advantage:

The standard clamps slide along the C-shaped rails to fix the tent in the desired position. This position varies depending on the type of car, to be used as a carryall or for best appearance.

The tent bases must not be drilled for fixing onto the roof bars.

No holes are to be drilled in the roof bars to secure the tent. This operation is prohibited by current safety regulations. It is not permitted to make changes to the roof rack.

4 clamps are provided as standard for simple, easy mounting according to the rules.

Universal System Autohome is a mounting system according to the standards, certified by T.V - ID: 0000024461. Beware of imitations.

An example of a roof rack for motor cars without water channels.

Connection for off-road vehicles or motor cars with water channels.

Attachment bars for motor cars with fitted rails.

Special Order: Roof Bars or Expedition Roof Racks available in Steel or Aluminium.

CLAMPS SIZE AVAILABLE

AUTOHOME
DRIVE CALM AND SLEEP PEACEFULLY

Safety is priceless for us at Autohome and for this reason our research and development centre has always worked on two fronts: first to guarantee "no problem journeys" and second to ensure "peaceful nights".

NO PROBLEM JOURNEYS

The roof tent is a load subject to dynamic stress when driving on the road and like any other load outside the vehicle must be firmly anchored and give a guarantee of safety, in order not to become a hazard. Autohome roof tents are made
of the best materials to be solid and robust, able to withstand the stresses of the asphalt and the aerodynamic drag of the wind. They passed the stringent certification tests of the product and materials to travel years and years without problems.

AUTOHOME QUALITY TENTS CERTIFIED ALSO BY TÜV



PEACEFUL NIGHTS

The same attention we paid to dynamic security was also given to the quality of sleep. First choice materials, accurate finishes, attention to details mean that in the Autohome tent you sleep in a real bed, insulated from the heat and cold and soundproofed from rain noise.

WARNING

There are roof tents on the market that do not have any real product certification. Beware of certifications such as ISO 9001 that some sellers advertise, because they concern the company organization and are not at all a guarantee of quality and security of the tent you are going to buy.
On the contrary, Autohome roof tents have passed stringent quality tests of the materials used, carried out in the laboratories of qualified Bodies, including the German TÜV.

Il sito www.autohome-official.com utilizza i cookie (tecnici propri e di profilazione di terze parti) per garantirti una migliore esperienza di navigazione e per offrirti, quando sei online, accesso alle funzionalità offerte dai principali social network. Se selezioni "Continuare" o accedi a qualunque contenuto presente sul nostro sito senza definire le tue scelte, acconsenti all'utilizzo dei cookie. Per saperne di più e per negare il consenso ai cookie clicca qui

Questo sito utilizza i cookie per fornire la migliore esperienza di navigazione possibile. Continuando a utilizzare questo sito senza modificare le impostazioni dei cookie o cliccando su "Accetta" permetti il loro utilizzo.

Chiudi
