The Overzone Roof Tent

Overzone ®

THE ORIGINAL ROOF TOP TENT


A RANGE OF SUCCESS

The same DNA as Overland, the same adventurous spirit: Overzone is the largest roof tent in the range. With an intelligent and innovative design, providing maximum space on top of the vehicle: you’ll notice the size and comfort as you as set foot in the Overzone roof tent.
Overzone has a 420 g aluminium and fabric structure, is breathable and waterproof, and continues the Autohome tradition with a roof tent model that provides maximum space.
The striking appearance is due to a well-proportioned, streamlined design, making the Overzone a perfect solution for people wanting to explore imposing landscapes, where adventures occur every day.

COLOUR OF FABRICS

Safari Olive

The Overzone has two mounting options, Standard and Explorer. Standard Option - opening over the side of the vehicle, particularly useful for vehicles with a lifting tailgate. Explorer Option – popular with 4x4 owners. The tent offers shade or shelter above the rear door.

MODELS AND SIZES
OVERZONE

STANDARD SET-UP

Opening and entrance from the vehicle side for all models.

oz_me_smallSMALL
Recommended for 2 adults.
Art:OZ/01
Overzone Small
Sizes:130 x 220 cm
Closed h:35 cm
Open:130 x 220 + 70 (appendix) x h 125
Weight:about 48 Kg*
oz_ms_mediumMEDIUM
Recommended for 2 adults + 1 child.
Art:OZ/02
Overzone Medium
Sizes:160 x 220 cm
Closed h:35 cm
Open:160 x 220 + 70 (appendix) x h 125
Weight: aboutabout 57 Kg*

EXPLORER SET-UP

Opening and entrance from the rear of the vehicle. Perfect for off-road vehicles. On request, SMALL and MEDIUM.

oz_me_smallSMALL
Recommended for 2 adults.
Art:OZE/01
Overzone Small
Sizes:130 x 220 cm
Closed h:35 cm
Open:130 x 220 + 70 (appendix) x h 125
Weight:about 48 Kg*
 oz_me_mediumMEDIUM
recommended for 2 adults + 1 child.
Art:OZE/02
Overzone Medium
Sizes:160 x 220 cm
Closed h:35 cm
Open:160 x 220 + 70 (appendix) x h 125
Weight:about 57 Kg*

OVERZONE FEATURES

The travel over-cover can be quickly removed by the single elastic tensioner. The particular configuration always assures the maximum adherence also during the trip.
The ladder is permanently connected to the base of the tent and allows to open quickly the tent with no effort.
Overland is ready in a moment: your holiday can afford any comfort you would like to have.

1 - Adjustable tensioning bar, in combination with straps to maintain rigidity and stability at the entrance.

2 - Multi-use hooks to organize your daily essentials.

3 - Internal and external window covers, both of which can be opened and closed from inside the tent. Vertical opening external window covers eliminate any sail effect on the tent material.

COMFORT ALWAYS HOLDS THE FIRST PLACE

FABRICS

The roof and sides are made of a heavy duty single skin 420g/m2, 50% cotton and 50% acrylic fabric, which is water proof, breathable and rot-proof.
This fabric has several advantages: it’s extremely breathable, so inside the tent is fresh and airy, unlike plastic-coated or resin-treated fabrics, which are non-breathable and therefore create lots of condensation, which is the main cause of moulds. However the breathable nature of the fabric doesn’t reduce it’s impermeabilty to rain: on contact with water, the fabric weave swells and thickens; where sewing has occurred, the holes created by the needles swell and seal as does the thread used for stitching, whereas in plastic-coated fabrics, some permeable holes will still remain.

YARNS

A widely used, high-technology yarn, made of two different fibres: pure cotton outside, to swell on contact with water and fill the holes made by the needle plus a synthetic fibre core is used on the inside of the yarn to obtain a high strength seam.

PLATFORM BOARDS

The boards used for the tent base are made of a poplar plywood, which, thanks to its long fibres, is very resilient and hard-wearing. This 12 mm thick plywood has been developed for this particular application; the different layers are bonded together by the cross-overlapping method, following the wood grain to produce the products unique features. The Air-Camping procedure includes, veneering both outside and inside of the tent base, by applying two 0.3 mm thick Silver-Quartz CHPL (Casework with High Pressure Laminate Finish) laminated sheets. The plywood, therefore, has a double protection: it is waterproof and water-repellent both outside and inside, does not absorb humidity, will not warp and prevents the formation of harmful mould.

METAL COMPONENTS

Both steel and aluminium are used in a combination that achieves a tent with strength, high resistance to wear and the elements, yet still maintain a light overall weight. The metal elements used are first quality; being hot-galvanized during the mills’ rolling process directly in the factory.

LADDER

Made of aluminium with steel stiffeners and extendable up to 2.30 metres. Quick release spring clips allow easy adjustment to the height of the ladder, and also keep it firmly locked in place on the tent base when in transit. With the tent in use, an automatic blocking mechanism prevents the ladder from slipping when being climbed, and allows for using the tent on uneven ground and smooth or slippery asphalts or pavements.

OVERZONE TECHNICAL DETAILS

A.
B.
C.
D.
E.
A. B.

The closed tent can contain 2 or 3 pillows, depending on the model, and night-time accessories.
For example, a rucksack and blankets can be fitted inside the tent, so they don’t take up room in the boot or inside the vehicle.

C.

When choosing a roof tent, the height is important because it shows how much room there is inside and how easy it is to move about, hence the comfort.
Even just a few centimetres more or less make a big difference: everything has been calculated to ensure that a person of average height (170-190 cm) can sit comfortably without the head coming close to the ceiling.
The overall length of 290 provides optimum comfort: 220 cm + a 70 cm extension.

D.

The width (SMALL /MEDIUM) depends on the number of occupants
The windows are big enough to give an excellent view and small enough not to compromise privacy.

E.

Standard bases include 2 strong C-shaped steel bars to hook the tent onto the vehicle roof rails, using the clamps supplied. All small and medium models have Standard or Explorer opening, with pre-fitted “C” guides (specify Explorer with the order). For Explorer, the guides are moved to the holes on the Overland floor.

DESIGN MADE IN ITALY

Design Made in Italy means quality, originality and style. A production process based on master craftsmanship and industry, characterized by high-quality materials, aesthetic taste, a care for detail, sensitivity to beauty and durability,
making Autohome a leading and excellent participant in international competition.

The reasons for the worldwide success are based on a strong local artistic and cultural tradition. Just as a tree is nourished by the soil in which it is rooted, so Autohome draws from the skills and creativity of the territory, its art and culture.

A RANGE OF SUCCESS

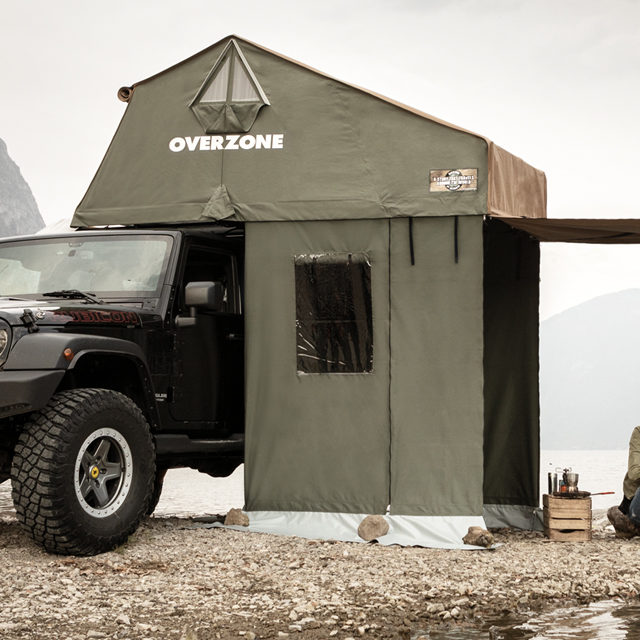

Accessories are made from the same quality 420g fabric as the Overzone. The Day Room consists of 4 panels with zip fastener doors. Each side has one window; one a fixed transparent window, and one with mosquito mesh, both have ‘curtains’ for privacy. To use the end panel as an extended awning two telescopic poles are supplied. A practical, easy to use non-bulky accessory, with a multitude of uses such as kitchen, dressing area, toilet tent or shower room.

accessori_overzone1
accessori_overzone2
accessori_overzone2

DAY ROOM

For cars: art. OZ/04A
(Small cm 130x180, Medium cm 160x180)

For 4x4: art. OZ/05A
(Small cm 130x180, Medium cm 160x180)

The framework is constructed from round anodised aluminium poles

WINTER HOOD

Art. OZ/03A

Traditional hood made from aluminised nylon to offer increased protection from sun rays and cold conditions.


FEET

Art. OZ/05A

Eight strong ground supports for Overzone; about 25 cm high, they keep a safe distance away from moisture, water and insects. Fold-away, adjustable, compact, they are fitted to Overzone by easy to use handles and can be left fitted during the journey.


UNIVERSAL SYSTEM

The exclusive Autohome security system allows all tents to be used on any vehicle: small cars, off-road vehicles, station-wagons, MPV’s (or people carriers), camper vans, and pick-up trucks... A universal, quick attachment system, allows you to position the tent safely in any position, with no risk of damage or modifications to the body of the vehicle. Various fixing kits are available to suit.

1st Advantage:

All tents are fully independent for easy installation on the car roof.

2nd Advantage:

The C-shaped steel rails integrated into the bases of all Autohome models strengthen the structure and make it possible to fix the tent to the roof bars by means of special clamps.

3rd Advantage:

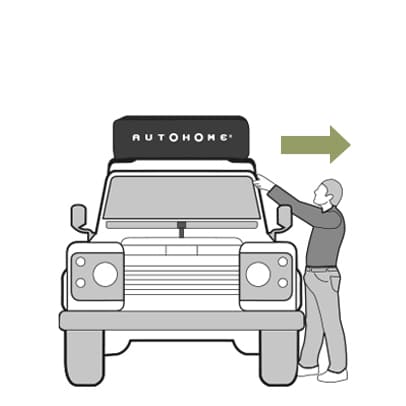

Just two people (standing beside the car) can easily lift the tent and position it on the roof bars without risk to the bodywork.

4th Advantage:

The standard clamps slide along the C-shaped rails to fix the tent in the desired position. This position varies depending on the type of car, to be used as a carryall or for best appearance.

The tent bases must not be drilled for fixing onto the roof bars.

No holes are to be drilled in the roof bars to secure the tent. This operation is prohibited by current safety regulations. It is not permitted to make changes to the roof rack.

4 clamps are provided as standard for simple, easy mounting according to the rules.

Universal System Autohome is a mounting system according to the standards, certified by T.V - ID: 0000024461. Beware of imitations.

An example of a roof rack for motor cars without water channels.

Connection for off-road vehicles or motor cars with water channels.

Attachment bars for motor cars with fitted rails.

Special Order: Roof Bars or Expedition Roof Racks available in Steel or Aluminium.

CLAMPS SIZE AVAILABLE
